StatsWidget: Display a set of statictics for plot items#

Module containing widgets displaying stats from items of a plot.

StatsWidget class#

class StatsWidget(parent=None, plot=None, stats=None)[source]#

Bases: QWidget

Widget displaying a set of Stat to be displayed on a StatsTable and to be apply on items contained in the Plot Also contains options to:

  • compute statistics on all the data or on visible data only

  • show statistics of all items or only the active one

Parameters:
  • parent (QWidget) – Qt parent

  • plot (Union[PlotWidget,SceneWidget]) – The plot containing items on which we want statistics.

  • stats (StatsHandler) – Set the statistics to be displayed and how to format them using

sigVisibilityChanged#

Signal emitted when the visibility of this widget changes.

It Provides the visibility of the widget.

showEvent(self, a0: QShowEvent | None)[source]#
hideEvent(self, a0: QHideEvent | None)[source]#
setStats(statsHandler)[source]#

Set which stats to display and the associated formatting.

Parameters:

statsHandler (StatsHandler) – Set the statistics to be displayed and how to format them using

setPlot(plot)[source]#

Define the plot to interact with

Parameters:

plot (Union[PlotWidget,SceneWidget,None]) – The plot containing the items on which statistics are applied

getPlot()[source]#

Returns the plot attached to this widget

Return type:

Union[PlotWidget,SceneWidget,None]

setDisplayOnlyActiveItem(displayOnlyActItem)[source]#

Toggle display off all items or only the active/selected one

Parameters:

displayOnlyActItem (bool) – True if we want to only show active item

setStatsOnVisibleData(b)[source]#

Toggle computation of statistics on whole data or only visible ones.

Warning

When visible data is activated we will process to a simple filtering of visible data by the user. The filtering is a simple data sub-sampling. No interpolation is made to fit data to boundaries.

Parameters:

b (bool) – True if we want to apply statistics only on visible data

getUpdateMode()[source]#

Returns update mode (See setUpdateMode()).

Returns:

update mode

Return type:

UpdateMode

setUpdateMode(mode)[source]#

Set the way to update the displayed statistics.

Parameters:

mode (Union[str,UpdateMode]) – mode requested for update

BasicStatsWidget class#

class BasicStatsWidget(parent=None, plot=None)[source]#

Bases: StatsWidget

Widget defining a simple set of Stat to be displayed on a StatsWidget.

Parameters:
  • parent (QWidget) – Qt parent

  • plot (PlotWidget) – The plot containing items on which we want statistics.

  • stats (StatsHandler) – Set the statistics to be displayed and how to format them using

../../../_images/BasicStatsWidget.png

StatsTable class#

class StatsTable(parent=None, plot=None)[source]#

Bases: _StatsWidgetBase, TableWidget

TableWidget displaying for each items contained by the Plot some information:

  • legend

  • minimal value

  • maximal value

  • standard deviation (std)

Parameters:
  • parent (QWidget) – The widget’s parent.

  • plot (Union[PlotWidget,SceneWidget]) – PlotWidget or SceneWidget instance on which to operate

sigUpdateModeChanged#

Signal emitted when the update mode changed

setStats(statsHandler)[source]#

Set which stats to display and the associated formatting.

Parameters:

statsHandler (StatsHandler) – Set the statistics to be displayed and how to format them using

setPlot(plot)[source]#

Define the plot to interact with

Parameters:

plot (Union[PlotWidget,SceneWidget,None]) – The plot containing the items on which statistics are applied

clear()[source]#

Define the plot to interact with

Parameters:

plot (Union[PlotWidget,SceneWidget,None]) – The plot containing the items on which statistics are applied

setDisplayOnlyActiveItem(displayOnlyActItem)[source]#

Toggle display off all items or only the active/selected one

Parameters:

displayOnlyActItem (bool) – True if we want to only show active item

BasicLineStatsWidget class#

class BasicLineStatsWidget(parent=None, plot=None, kind='curve', stats=<silx.gui.plot.stats.statshandler.StatsHandler object>, statsOnVisibleData=False)[source]#

Bases: QWidget

Widget defining a simple set of Stat to be displayed on a LineStatsWidget.

Parameters:
  • parent (QWidget) – Qt parent

  • plot (Union[PlotWidget,SceneWidget]) – The plot containing items on which we want statistics.

  • kind (str) – the kind of plotitems we want to display

  • stats (StatsHandler) – Set the statistics to be displayed and how to format them using

  • statsOnVisibleData (bool) – compute statistics for the whole data or only visible ones.

setUpdateMode(mode)[source]#

Set the way to update the displayed statistics.

Parameters:

mode (Union[str,UpdateMode]) – mode requested for update

getUpdateMode()[source]#

Returns update mode (See setUpdateMode()).

Returns:

update mode

Return type:

UpdateMode

setPlot(plot)[source]#

Define the plot to interact with

Parameters:

plot (Union[PlotWidget,SceneWidget,None]) – The plot containing the items on which statistics are applied

setStats(statsHandler)[source]#

Set which stats to display and the associated formatting.

Parameters:

statsHandler (StatsHandler) – Set the statistics to be displayed and how to format them using

setKind(kind)[source]#

Change the kind of active item to display :param str kind: kind of item to display information for (‘curve’ …)

getKind()[source]#
Returns:

kind of item we want to compute statistic for :rtype: str

setStatsOnVisibleData(b)[source]#

Toggle computation of statistics on whole data or only visible ones.

Warning

When visible data is activated we will process to a simple filtering of visible data by the user. The filtering is a simple data sub-sampling. No interpolation is made to fit data to boundaries.

Parameters:

b (bool) – True if we want to apply statistics only on visible data

showRadioButtons(show)[source]#

show / hide the QRadioButtons

Parameters:

show (bool) – if True make RadioButton visible

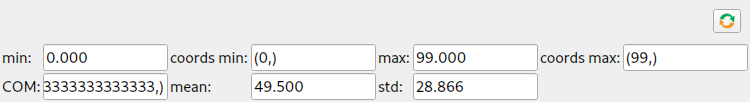

BasicGridStatsWidget class#

class BasicGridStatsWidget(parent=None, plot=None, kind='curve', stats=<silx.gui.plot.stats.statshandler.StatsHandler object>, statsOnVisibleData=False)[source]#

Bases: QWidget

pymca design like widget

Parameters:
  • parent (QWidget) – Qt parent

  • plot (Union[PlotWidget,SceneWidget]) – The plot containing items on which we want statistics.

  • stats (StatsHandler) – Set the statistics to be displayed and how to format them using

  • kind (str) – the kind of plotitems we want to display

  • statsOnVisibleData (bool) – compute statistics for the whole data or only visible ones.

  • statsPerLine (int) – number of statistic to be displayed per line

../../../_images/BasicGridStatsWidget.png
setUpdateMode(mode)[source]#

Set the way to update the displayed statistics.

Parameters:

mode (Union[str,UpdateMode]) – mode requested for update

getUpdateMode()[source]#

Returns update mode (See setUpdateMode()).

Returns:

update mode

Return type:

UpdateMode

setPlot(plot)[source]#

Define the plot to interact with

Parameters:

plot (Union[PlotWidget,SceneWidget,None]) – The plot containing the items on which statistics are applied

setStats(statsHandler)[source]#

Set which stats to display and the associated formatting.

Parameters:

statsHandler (StatsHandler) – Set the statistics to be displayed and how to format them using

setKind(kind)[source]#

Change the kind of active item to display :param str kind: kind of item to display information for (‘curve’ …)

getKind()[source]#
Returns:

kind of item we want to compute statistic for :rtype: str

setStatsOnVisibleData(b)[source]#

Toggle computation of statistics on whole data or only visible ones.

Warning

When visible data is activated we will process to a simple filtering of visible data by the user. The filtering is a simple data sub-sampling. No interpolation is made to fit data to boundaries.

Parameters:

b (bool) – True if we want to apply statistics only on visible data

showRadioButtons(show)[source]#

show / hide the QRadioButtons

Parameters:

show (bool) – if True make RadioButton visible
