# ArrayTableWidget¶

ArrayTableWidget is a widget designed to visualize numpy arrays or h5py datasets.

## 3D example¶

Let’s look at a simple usage example:

from silx.gui import qt
from silx.gui.data.ArrayTableWidget import ArrayTableWidget
import numpy
array = numpy.arange(1000)
array.shape = (5, 10, 20)
app = qt.QApplication([])
w = ArrayTableWidget()
w.setArrayData(array, labels=True)
w.show()
app.exec_()

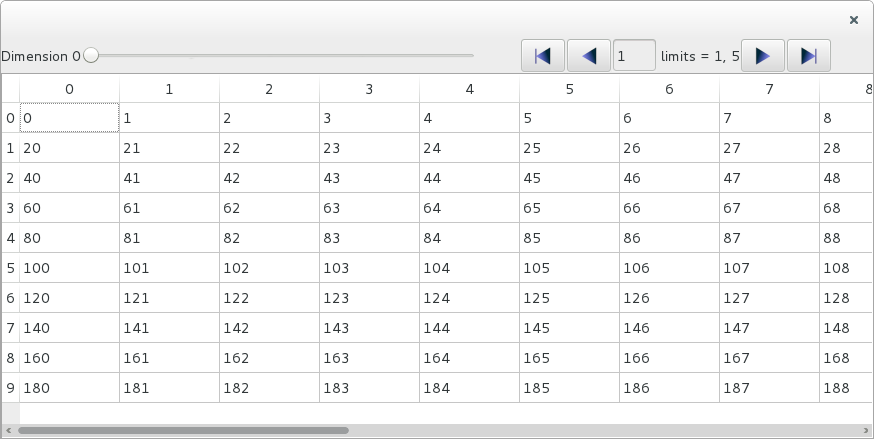

We get a widget that allows us to see a slice, or a frame, of 2D data with 10 lines and 20 columns, in a 3D array (5 x 10 x 20). The column index corresponds to the last dimension of the array, and the row index corresponds to the second to last dimension. The first index can be browsed using a slider, icons or a text entry for access to any given slice among the 5 available.

The parameter labels=True of setArrayData() causes the browser to be labeled Dimension 0.

If we want to see slices in different perspective, we can use ArrayTableWidget.setPerspective(). The perspective is defined as the list of dimensions that are not represented in the frame, orthogonal to it. For a 3D array, there are 3 possible perspectives: [0, ] (the default perspective), [1, ] and [2, ].

Lets change the perspective:

w.setPerspective([1])

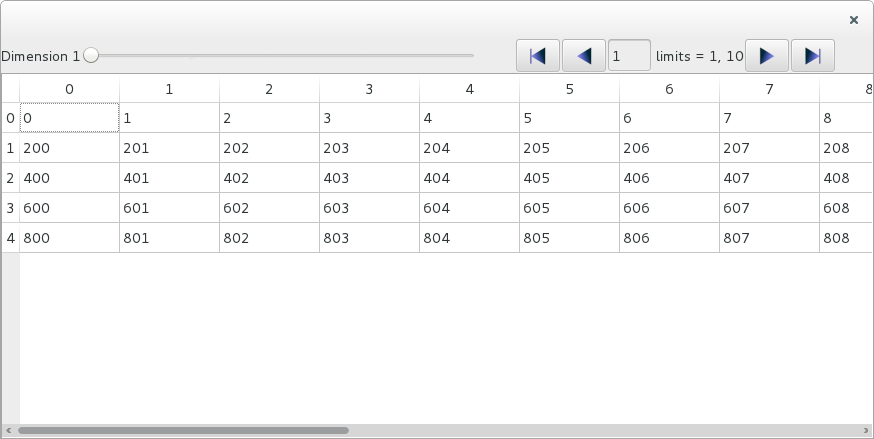

What we see now is a frame of 5 x 20 values, and the browser now browses the second dimension to select one of 10 available frames. The label is updated accordingly to show Dimension 1.

To select a different frame programmatically, without using the browser, you can use the ArrayTableWidget.setIndex() method. To select the 9-th frame, use:

w.setIndex([8])


## More dimensions¶

This widget can be used for arrays with any numbers of dimensions. Let’s create a 5-dimensional array and display it:

array = numpy.arange(10000)
array.shape = (5, 2, 10, 5, 20)
w.setArrayData(array, labels=True)

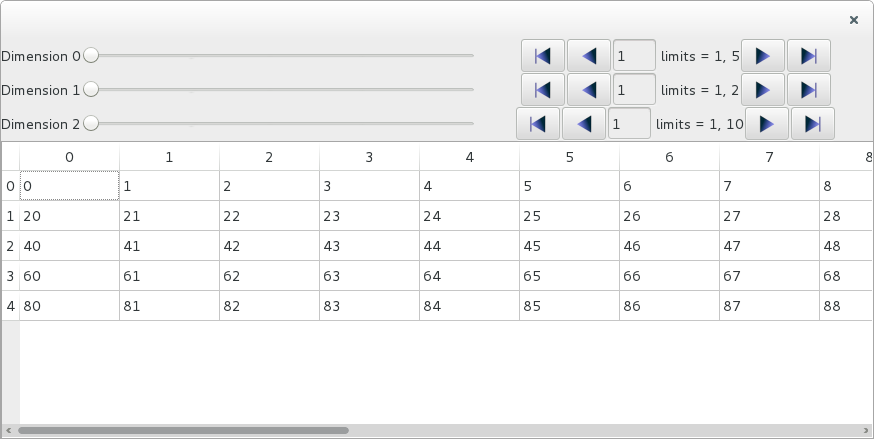

We now have 3 frames browsers, one for each one of the orthogonal dimensions.

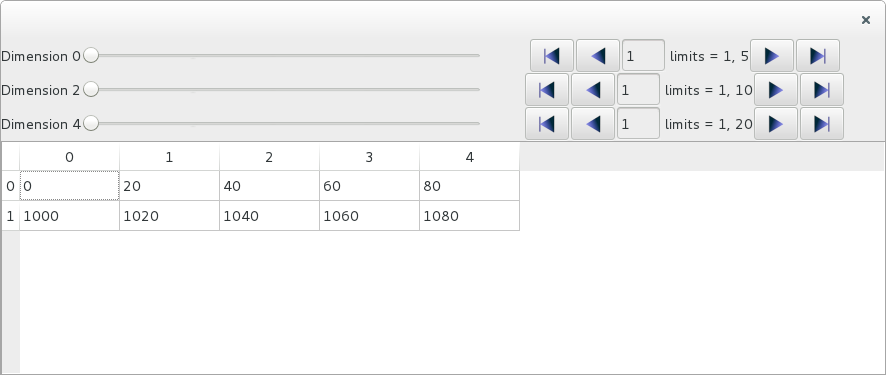

Let’s look at a frame whose axes are along the second and the fourth dimension, by setting the orthogonal axes to the first, third and fifth dimensions:

w.setPerspective([0, 2, 4])


Listing all the orthogonal dimensions might not feel very convenient for arrays with more than 3 or 4 dimensions. Fortunately, you can use the opposite approach of defining the two axes parallel to the frame, using ArrayTableWidget.setFrameAxes():

w.setFrameAxes(row_axis=1, col_axis=3)


This achieves the exact same result as w.setPerspective([0, 2, 4]).

Note

Currently you cannot switch the row and column axes. The row axis is always the lowest free dimension and the column axis is the highest one with the current implementation. So setting w.setFrameAxes(row_axis=3, col_axis=1) would not modify the table axes.

For the same reason, the order of the dimensions given as parameter to setPerspective() is not significant.

To select a frame programmaticaly, you can again use setFrameIndex(). This time you must provide 3 unique indices:

w.setIndex([2, 5, 14])


The 3 indices relate to the first, third and fifth dimensions.

The frame index must always be defined as indices on the orthogonal axes/dimensions, as defined by the perspective.

## Editing the data¶

By default, the data displayed in the table view can be edited. If you modify a cell with a valid value, it will be modified in the internal data model.

You can get the modified data with the following line:

newdata = w.getData()


This will give you a copy of the data, by default.

If you want the data to be read-only, not editable, you must specify it when you set the data:

w.setDataArray(array, editable=False)


## More performances¶

By default, the method setArrayData() creates a copy of the data array for internal storage. This ensures that the original data object is not modified when a cell of the table is changed interactively in the widget.

This behavior has a negative impact on performances, especially for large data arrays. To avoid this, you can explicitly disable the copy operation when setting the data:

w.setArrayData(array, copy=False)


The internal data array used by the widget is then a reference to the same data object as the original array. The memory is shared and is not duplicated.

Warning

This can cause side-effects, if your original array is re-used elsewhere in your program.

Similarly, you can pass copy=False to the getData() method, to avoid doing a data copy operation:

newdata = w.getData(copy=False)


The variable newdata is then a reference to the internal widget data.

Warning

Modifying the internal data used by the widget can have unpredictable consequences.

## Background color¶

You can set the background color for each cell by passing a numpy array of RGB colors to the setArrayColors() method.

The colors array must have one more dimension than the data array. This dimension must be of length 3 for RGB colors or length 4 for RGBA colors.

The colors array associates 3 (or 4) integers between 0 and 255 to each value in the data array. The values represent the red, green, blue and alpha (opacity) channels.

In the following examples, we create a table displaying a complete palette of RGB colors.

import numpy
from silx.gui import qt
from silx.gui.widgets.ArrayTableWidget import ArrayTableWidget

# data array
data = numpy.arange(256**3)
data.shape = 256, 256, 256

# RGB colors array
bcolors = numpy.empty((256, 256, 256, 3), dtype=numpy.uint8)
# fill red channel
bcolors[..., 0] = data[:] & 255
# green
bcolors[..., 1] = (data[:] & (255 << 8)) >> 8
# blue
bcolors[..., 2] = (data[:] & (255 << 16)) >> 16

# make text contrast with background (XOR)
fcolors = numpy.bitwise_xor(bcolors, 255)

app = qt.QApplication([])

atw = ArrayTableWidget()
atw.setArrayData(data, copy=False)
atw.setArrayColors(bgcolors=bcolors,
fgcolors=fcolors)
atw.show()

app.exec_()
