AbstractDataFileDialog#

This module contains an AbstractDataFileDialog.

class AbstractDataFileDialog(parent=None)[source]#

Bases: QDialog

The AbstractFileDialog provides a generic GUI to create a custom dialog allowing to access to file resources like HDF5 files or HDF5 datasets.

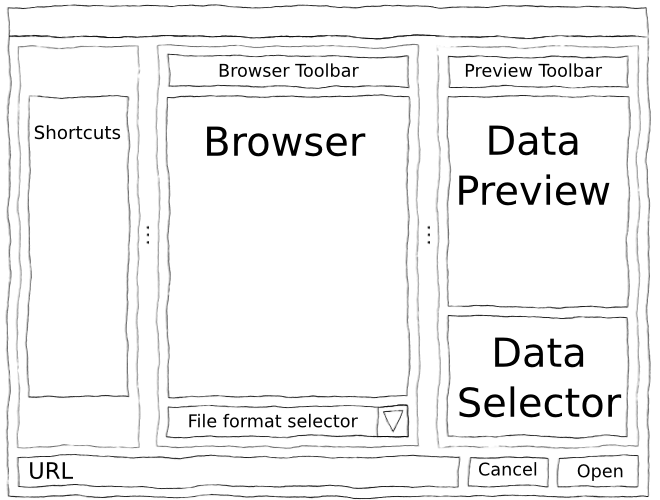

../../../_images/abstractdatafiledialog.png

The dialog contains:

  • Shortcuts: It provides few links to have a fast access of browsing

    locations.

  • Browser: It provides a display to browse throw the file system and inside

    HDF5 files or fabio files. A file format selector is provided.

  • URL: Display the URL available to reach the data using

    silx.io.get_data(), silx.io.open().

  • Data selector: A widget to apply a sub selection of the browsed dataset.

    This widget can be provided, else nothing will be used.

  • Data preview: A widget to preview the selected data, which is the result

    of the filter from the data selector. This widget can be provided, else nothing will be used.

  • Preview’s toolbar: Provides tools used to custom data preview or data

    selector. This widget can be provided, else nothing will be used.

  • Buttons to validate the dialog

done(self, a0: int)[source]#
hasPendingEvents()[source]#

Returns true if the dialog have asynchronous tasks working on the background.

viewMode()[source]#

Returns the current view mode.

Return type:

qt.QFileDialog.ViewMode

setViewMode(mode)[source]#

Set the current view mode.

Parameters:

mode (qt.QFileDialog.ViewMode) – The new view mode

setDirectory(path)[source]#

Sets the data dialog’s current directory.

selectedFile()[source]#

Returns the file path containing the selected data.

Return type:

str

selectFile(filename)[source]#

Sets the data dialog’s current file.

selectUrl(url)[source]#

Sets the data dialog’s current data url.

Parameters:

url (Union[str,DataUrl]) – URL identifying a data (it can be a DataUrl object)

selectedUrl()[source]#

Returns the URL from the file system to the data.

If the dialog is not validated, the path can be an intermediat selected path, or an invalid path.

Return type:

str

selectedDataUrl()[source]#

Returns the URL as a DataUrl from the file system to the data.

If the dialog is not validated, the path can be an intermediat selected path, or an invalid path.

Return type:

DataUrl

directory()[source]#

Returns the path from the current browsed directory.

Return type:

str

selectedNameFilter()[source]#

Returns the filter that the user selected in the file dialog.

history()[source]#

Returns the browsing history of the filedialog as a list of paths.

Return type:

List<str>

setSidebarUrls(urls)[source]#

Sets the urls that are located in the sidebar.

sidebarUrls()[source]#

Returns a list of urls that are currently in the sidebar.

restoreState(state)[source]#

Restores the dialogs’s layout, history and current directory to the state specified.

Parameters:

state (qt.QByteArray) – Stream containing the new state

Return type:

bool

saveState()[source]#

Saves the state of the dialog’s layout, history and current directory.

Return type:

qt.QByteArray
