Getting started with HDF5 widgets#

Silx provides an implementation of a tree model and a tree view for HDF5 files. The aim of this tree is to provide a convenient read-only widget supporting file formats often used in synchrotrons for big amounts of data.

This page displays some source code to explain how to use this widget.

Commented source code#

Import and create your tree view#

HDF5 widgets are all exposed by the package silx.gui.hdf5.

import silx.gui.hdf5
treeview = silx.gui.hdf5.Hdf5TreeView()

Custom your tree view#

The tree view can be customised to be sorted by default.

# Sort content of files by time or name
treeview.setSortingEnabled(True)

The model can be customised to support mouse interaction. A convenient method, i.e., Hdf5TreeView.findHdf5TreeModel(), returns the main HDF5 model used through proxy models.

model = treeview.findHdf5TreeModel()

# Avoid the user to drop file in the widget
model.setFileDropEnabled(False)

# Allow the user to reorder files with drag-and-drop
model.setFileMoveEnabled(True)

The tree view is also provided with a custom header that helps to choose visible columns.

header = treeview.header()

# Select displayed columns
column_ids = [treeview.findHdf5TreeModel().NAME_COLUMN]
header.setSections(column_ids)

# Do not allow the user to custom visible columns
header.setEnableHideColumnsPopup(False)

Add a file by name#

The model can be used to add an HDF5 file. It is internally using silx.io.open().

model.insertFile("test.h5")

Add a file using h5py#

The model internally uses the h5py object API. We can use directly h5py Files, Groups and Datasets.

import h5py
h5 = h5py.File("test.h5", mode="r")

# We can use file
model.insertH5pyObject(h5)

# or group or dataset
model.insertH5pyObject(h5["group1"])
model.insertH5pyObject(h5["group1/dataset50"])

Add a file using silx#

Silx also provides an input API and supports HDF5 files through h5py.

import silx.io

# We can load HDF5 files
model.insertH5pyObject(silx.io.open("test.h5"))

# or Spec files
model.insertH5pyObject(silx.io.open("test.dat"))

Custom context menu#

The Hdf5TreeView provides a callback API to populate the context menu. The callback receives a Hdf5ContextMenuEvent every time the user requests the context menu. The event contains H5Node objects which wrap h5py objects adding extra information.

def my_action_callback(obj):
   # do what you want
   pass

def my_callback(event):
   objects = list(event.source().selectedH5Nodes())
   obj = objects[0]  # for single selection

   menu = event.menu()
   if obj.ntype is h5py.Dataset:
      action = qt.QAction("My funky action on datasets only", menu)
      action.triggered.connect(lambda: my_action_callback(obj))
      menu.addAction(action)

treeview.addContextMenuCallback(my_callback)

Capture selection#

The Hdf5TreeView widget provides default Qt signals inherited from QAbstractItemView.

  • activated:

    This signal is emitted when the item specified by index is activated by the user. How to activate items depends on the platform, e.g., by single- or double-clicking the item, or by pressing the Return or Enter key when the item is the current one.

  • clicked:

    This signal is emitted when a mouse button is clicked. The item selected by mouse click is specified by index. The signal is only emitted when the index is a valid one.

  • doubleClicked:

    This signal is emitted when a mouse button is double-clicked. The selected item is specified by index. The signal is only emitted when the index is a valid one.

  • entered:

    This signal is emitted when the mouse cursor enters the item specified by index. Mouse tracking needs to be enabled for this feature to work.

  • pressed:

    This signal is emitted when a mouse button is pressed. The selected item is specified by index. The signal is only emitted when the index is a valid one.

The method Hdf5TreeView.selectedH5Nodes() returns an iterator of H5Node objects which wrap h5py objects adding extra information.

def my_callback(index):
    objects = list(treeview.selectedH5Nodes())
    obj = objects[0]  # for single selection

    print(obj)

    print(obj.basename)             # not provided by h5py
    print(obj.name)
    print(obj.file.filename)

    print(obj.local_basename)       # not provided by h5py
    print(obj.local_name)           # not provided by h5py
    print(obj.local_file.filename)  # not provided by h5py

    print(obj.attrs)

    if obj.ntype is h5py.Dataset:
        print(obj.dtype)
        print(obj.shape)
        print(obj.value)        # create a copy of data of the dataset
        print(obj.h5py_object)  # reference to the Hdf5 dataset (or group)

treeview.clicked.connect(my_callback)

Example#

The hdf5widget.py sample code provides an example of properties of the view, model and header.

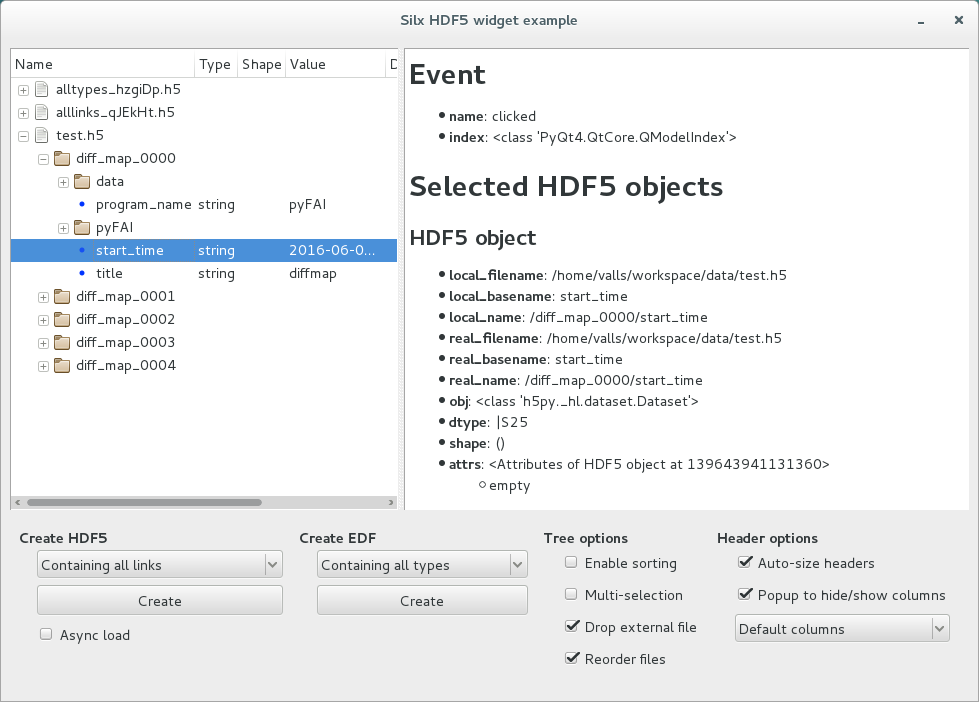

Example for HDF5TreeView features

Source code: hdf5widget.py.

After installing silx and downloading the script, you can run it from the command line prompt:

python hdf5widget.py <files>

This example loads files added to the command line, or files dropped from the file system. It also provides a GUI to display dummy test files.
