SceneWidget: 3D data viewer widget#

This module provides a widget to view data sets in 3D.

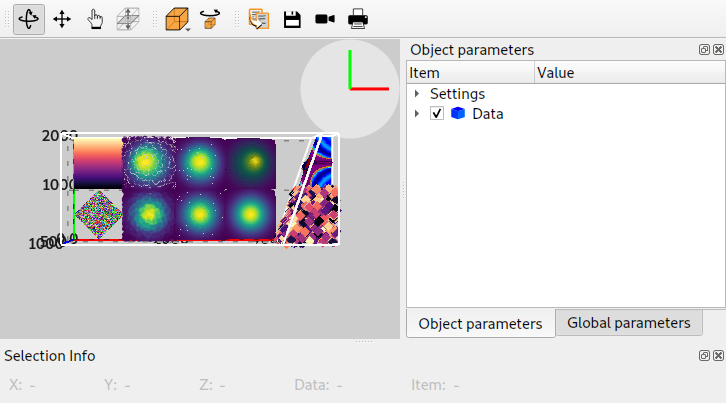

../../../_images/SceneWidget.png

For sample code using SceneWidget, see plot3dSceneWindow.py in silx.gui.plot3d sample code.

SceneWidget#

class SceneWidget(parent=None)[source]#

Bases: Plot3DWidget

Widget displaying data sets in 3D

model()[source]#

Returns the model corresponding the scene of this widget

Return type:

SceneModel

selection()[source]#

Returns the object managing selection in the scene

Return type:

SceneSelection

getSceneGroup()[source]#

Returns the root group of the scene

Return type:

GroupItem

pickItems(x, y, condition=None)[source]#

Iterator over picked items in the scene at given position.

Each picked item yield a PickingResult object holding the picking information.

It traverses the scene tree in a left-to-right top-down way.

Parameters:
  • x (int) – X widget coordinate

  • y (int) – Y widget coordinate

  • condition (callable) – Optional test called for each item checking whether to process it or not.

setInteractiveMode(mode)[source]#

Set the interactive mode.

‘panSelectedPlane’ mode set plane panning if a plane is selected, otherwise it fall backs to ‘rotate’.

Parameters:

mode (str) – The interactive mode: ‘rotate’, ‘pan’, ‘panSelectedPlane’ or None

getInteractiveMode()[source]#

Returns the interactive mode in use.

Return type:

str

addVolume(data, copy=True, index=None)[source]#

Add 3D data volume of scalar or complex to SceneWidget content.

Dataset order is zyx (i.e., first dimension is z).

Parameters:
  • data (numpy.ndarray[Union[numpy.complex64,numpy.float32]]) – 3D array of complex with shape at least (2, 2, 2)

  • copy (bool) – True (default) to make a copy, False to avoid copy (DO NOT MODIFY data afterwards)

  • index (int) – The index at which to place the item. By default it is appended to the end of the list.

Returns:

The newly created 3D volume item

Return type:

Union[ScalarField3D,ComplexField3D]

add3DScatter(x, y, z, value, copy=True, index=None)[source]#

Add 3D scatter data to SceneWidget content.

Parameters:
  • x (numpy.ndarray) – Array of X coordinates (single value not accepted)

  • y – Points Y coordinate (array-like or single value)

  • z – Points Z coordinate (array-like or single value)

  • value – Points values (array-like or single value)

  • copy (bool) – True (default) to copy the data, False to use provided data (do not modify!)

  • index (int) – The index at which to place the item. By default it is appended to the end of the list.

Returns:

The newly created 3D scatter item

Return type:

Scatter3D

add2DScatter(x, y, value, copy=True, index=None)[source]#

Add 2D scatter data to SceneWidget content.

Provided arrays must have the same length.

Parameters:
  • x (numpy.ndarray) – X coordinates (array-like)

  • y (numpy.ndarray) – Y coordinates (array-like)

  • value – Points value: array-like or single scalar

  • copy (bool) – True (default) to copy the data, False to use as is (do not modify!).

  • index (int) – The index at which to place the item. By default it is appended to the end of the list.

Returns:

The newly created 2D scatter item

Return type:

Scatter2D

addImage(data, copy=True, index=None)[source]#

Add a 2D data or RGB(A) image to SceneWidget content.

2D data is casted to float32. RGBA supported formats are: float32 in [0, 1] and uint8.

Parameters:
  • data (numpy.ndarray) – Image as a 2D data array or RGBA image as a 3D array (height, width, channels)

  • copy (bool) – True (default) to copy the data, False to use as is (do not modify!).

  • index (int) – The index at which to place the item. By default it is appended to the end of the list.

Returns:

The newly created image item

Return type:

ImageData or ImageRgba

Raises:

ValueError – For arrays of unsupported dimensions

addItem(item, index=None)[source]#

Add an item to SceneWidget content

Parameters:
  • item (Item3D) – The item to add

  • index (int) – The index at which to place the item. By default it is appended to the end of the list.

Raises:

ValueError – If the item is already in the SceneWidget.

removeItem(item)[source]#

Remove an item from SceneWidget content.

Parameters:

item (Item3D) – The item to remove from the scene

Raises:

ValueError – If the item does not belong to the group

getItems()[source]#

Returns the list of SceneWidget items.

Only items in the top-level group are returned.

Return type:

tuple

clearItems()[source]#

Remove all item from SceneWidget.

getTextColor()[source]#

Return color used for text

Return type:

QColor

setTextColor(color)[source]#

Set the text color.

Parameters:

color (QColor, str or array-like of 3 or 4 float in [0., 1.] or uint8) – RGB color: name, #RRGGBB or RGB values

getForegroundColor()[source]#

Return color used for bounding box

Return type:

QColor

setForegroundColor(color)[source]#

Set the foreground color.

Parameters:

color (QColor, str or array-like of 3 or 4 float in [0., 1.] or uint8) – RGB color: name, #RRGGBB or RGB values

getHighlightColor()[source]#

Return color used for highlighted item bounding box

Return type:

QColor

setHighlightColor(color)[source]#

Set highlighted item color.

Parameters:

color (QColor, str or array-like of 3 or 4 float in [0., 1.] or uint8) – RGB color: name, #RRGGBB or RGB values

SceneWidget items#

PickingResult#

class PickingResult(item, positions, indices=None, fetchdata=None)[source]#

Class to access picking information in a 3D scene.

getData(copy=True)[source]#

Returns picked data values

Parameters:

copy (bool) – True (default) to get a copy, False to return internal arrays

Return type:

Union[None,numpy.ndarray]

getPositions(frame='scene', copy=True)[source]#

Returns picking positions in item coordinates.

Parameters:
  • frame (str) – The frame in which the positions are returned Either ‘scene’ for world space, ‘ndc’ for normalized device coordinates or ‘object’ for item frame.

  • copy (bool) – True (default) to get a copy, False to return internal arrays

Returns:

Nx3 array of (x, y, z) coordinates

Return type:

numpy.ndarray
