DataViewerFrame: Widget to display any kind of data#

This module contains a DataViewer with a view selector.

class DataViewerFrame(parent=None)[source]#

A DataViewer with a view selector.

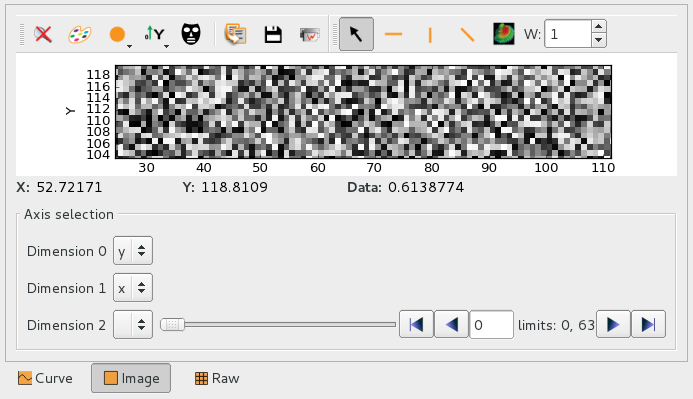

../../../_images/DataViewerFrame.png

This widget provides the same API as DataViewer. Therefore, for more documentation, take a look at the documentation of the class DataViewer.

import numpy
data = numpy.random.rand(500,500)
viewer = DataViewerFrame()
viewer.setData(data)
viewer.setVisible(True)
displayedViewChanged#

Emitted when the displayed view changes

dataChanged#

Emitted when the data changes

selectionChanged#

Emitted when the data selection changes.

It provides: - the slicing as a tuple of slice or None. - the permutation as a tuple of int or None.

setGlobalHooks(hooks)[source]#

Set a data view hooks for all the views

Parameters:

context (DataViewHooks) – The hooks to use

availableViews()[source]#

Returns the list of registered views

Return type:

List[DataView]

currentAvailableViews()[source]#

Returns the list of available views for the current data

Return type:

List[DataView]

createDefaultViews(parent=None)[source]#

Create and returns available views which can be displayed by default by the data viewer. It is called internally by the widget. It can be overwriten to provide a different set of viewers.

Parameters:

parent (QWidget) – QWidget parent of the views

Return type:

List[silx.gui.data.DataViews.DataView]

addView(view)[source]#

Allow to add a view to the dataview.

If the current data support this view, it will be displayed.

Parameters:

view (DataView) – A dataview

removeView(view)[source]#

Allow to remove a view which was available from the dataview.

If the view was displayed, the widget will be updated.

Parameters:

view (DataView) – A dataview

setData(data)[source]#

Set the data to view.

It mostly can be a h5py.Dataset or a numpy.ndarray. Other kind of objects will be displayed as text rendering.

Parameters:

data (numpy.ndarray) – The data.

data()[source]#

Returns the data

setDisplayMode(modeId)[source]#

Set the displayed view using display mode.

Change the displayed view according to the requested mode.

Parameters:

modeId (int) –

Display mode, one of

  • EMPTY_MODE: display nothing

  • PLOT1D_MODE: display the data as a curve

  • PLOT2D_MODE: display the data as an image

  • TEXT_MODE: display the data as a text

  • ARRAY_MODE: display the data as a table

getViewFromModeId(modeId)[source]#

See DataViewer.getViewFromModeId()

replaceView(modeId, newView)[source]#

Replace one of the builtin data views with a custom view. See DataViewer.replaceView() for more documentation.

Parameters:

newView (DataViews.DataView) – New data view

Returns:

True if replacement was successful, else False
