Sample Code

All sample codes can be downloaded as a zip file: silx_examples.zip.

silx.gui sample code

silx.gui.icons

Source	Screenshot	Description
icons.py		Display icons and animated icons provided by silx.

silx.gui.data and silx.gui.hdf5

Source	Screenshot	Description

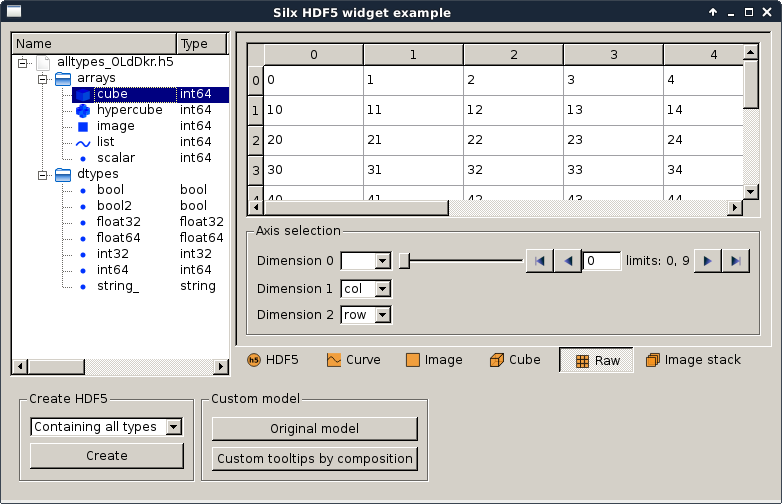

customHdf5TreeModel.py		Qt Hdf5 widget examples
customDataView.py		Qt data view example

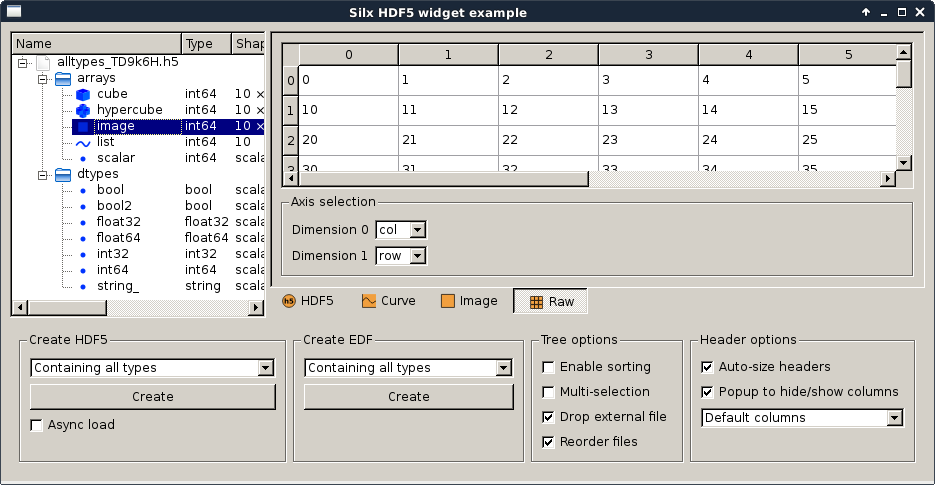

hdf5widget.py		Qt Hdf5 widget examples

silx.gui.dialog

Source	Screenshot	Description

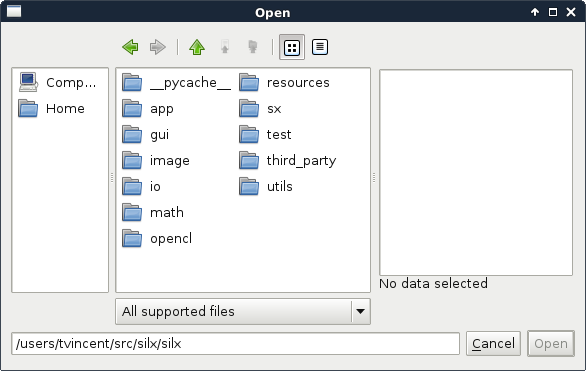

fileDialog.py		Example for the use of the ImageFileDialog.

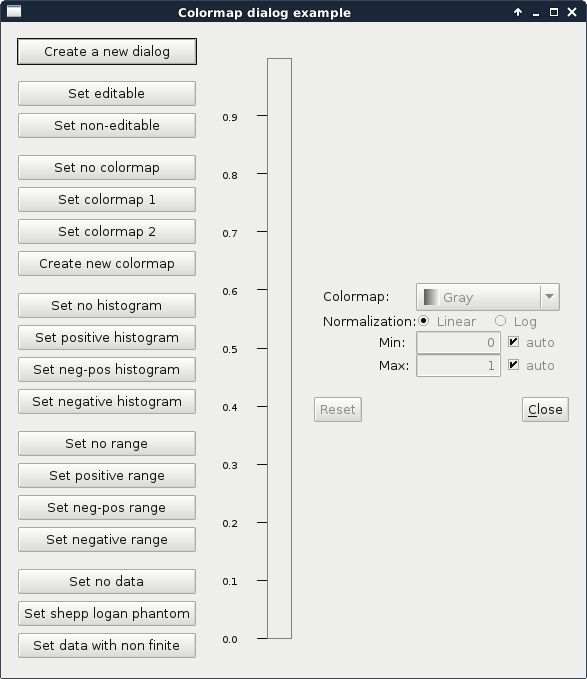

colormapDialog.py		This script shows the features of a ColormapDialog.

silx.gui.widgets

Source	Screenshot	Description

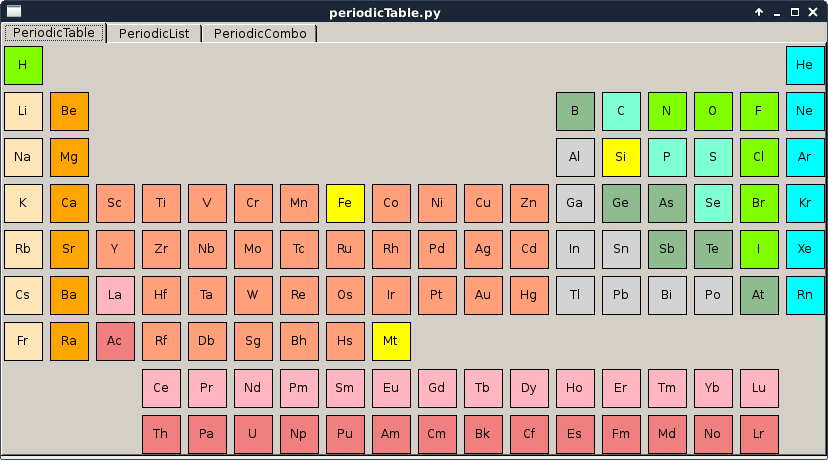

periodicTable.py		This script is a simple example of how to use the periodic table widgets, select elements and connect signals.
simplewidget.py		This script shows a gallery of simple widgets provided by silx. It shows the following widgets: WaitingPushButton: A button with a progress-like waiting animated icon.

silx.gui.plot sample code

Widgets

Source	Screenshot	Description

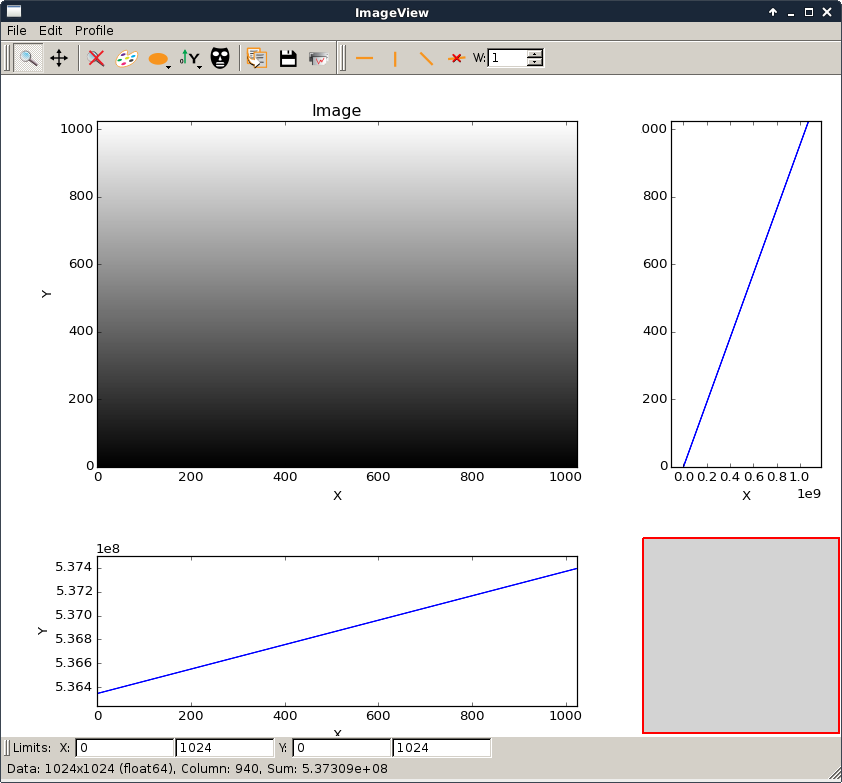

imageview.py		Example to show the use of ImageView widget. It can be used to open an EDF or TIFF file from the shell command line. To view an image file with the current installed silx library: python examples/imageview.py <file to open> To get help: python examples/imageview.py -h

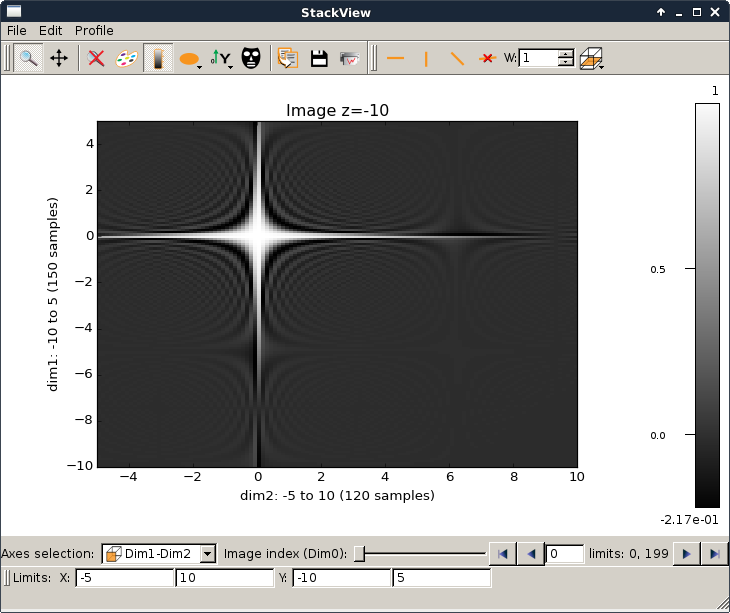

stackView.py		This script is a simple example to illustrate how to use the StackView widget.

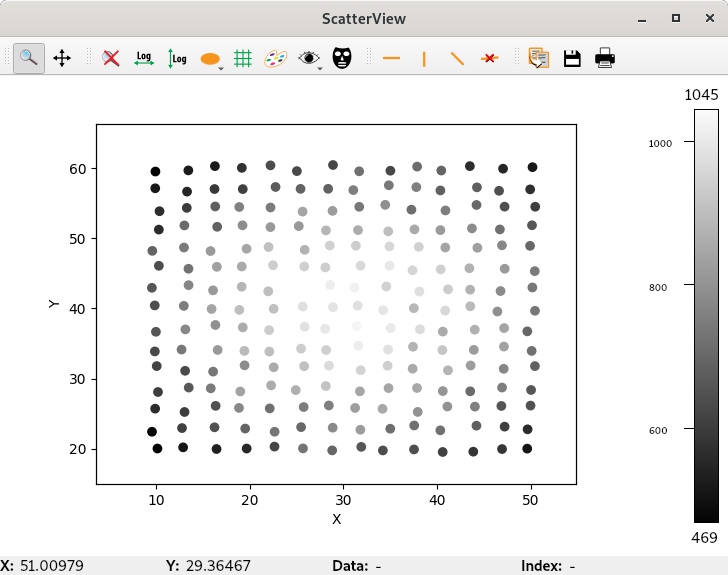

scatterview.py		Example to show the use of ScatterView widget

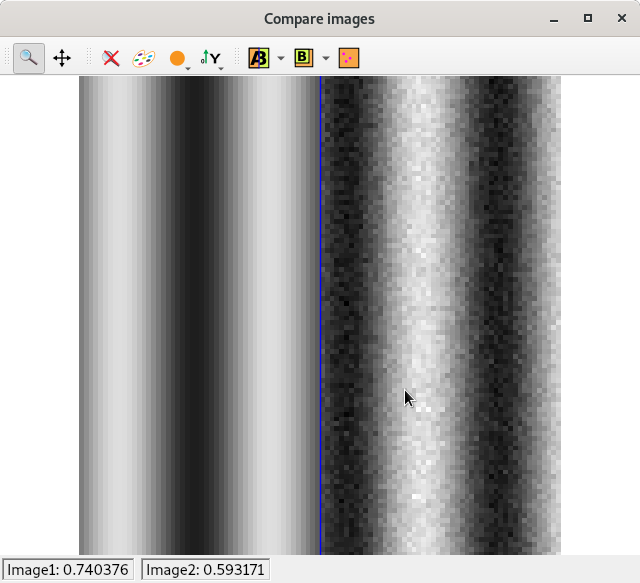

compareImages.py		usage: compareImages.py [-h] [–debug] [–testdata] [–use-opengl-plot] [files [files …]] Example demonstrating the use of the widget CompareImages positional arguments: files Image data to compare (HDF5 file with path, EDF files, JPEG/PNG image files). Data from HDF5 files can be accessed using dataset path and slicing as an URL: silx:../my_file.h5?path=/entry/data&slice=10 EDF file frames also can can be accessed using URL: fabio:../my_file.edf?slice=10 Using URL in command like usually have to be quoted: “URL”. optional arguments: -h, --help show this help message and exit --debug Set logging system in debug mode --testdata Use synthetic images to test the application --use-opengl-plot Use OpenGL for plots (instead of matplotlib)

silx.gui.plot.actions.PlotAction

Sample code that adds buttons to the toolbar of a silx plot widget.

Source	Screenshot	Description

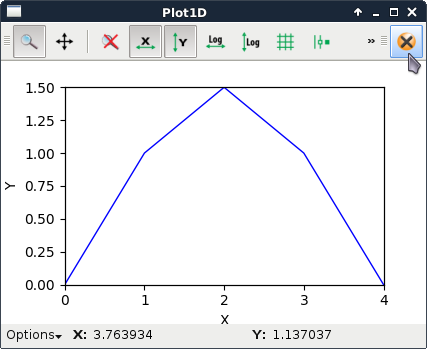

plotClearAction.py		This script shows how to create a minimalistic PlotAction that clear the plot. This illustrates how to add more buttons in a plot widget toolbar.

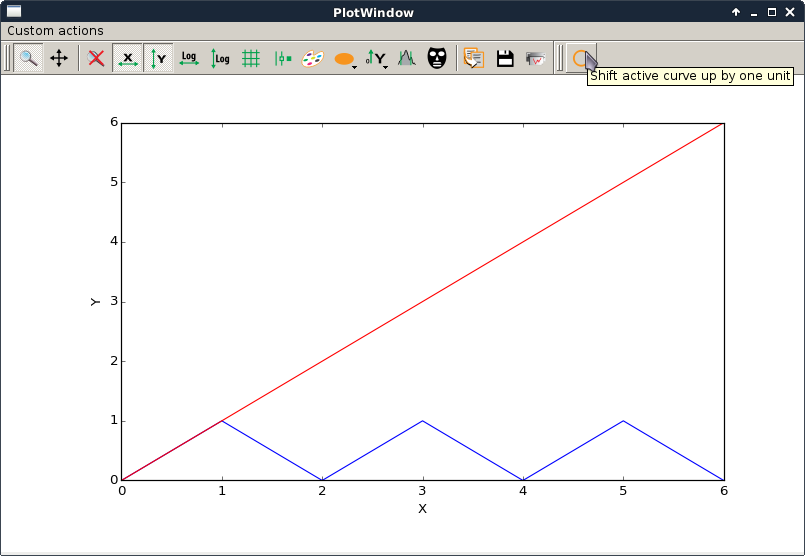

shiftPlotAction.py		This script is a simple (trivial) example of how to create a PlotWindow, create a custom PlotAction and add it to the toolbar. The action simply shifts the selected curve up by 1 unit by adding 1 to each value of y.

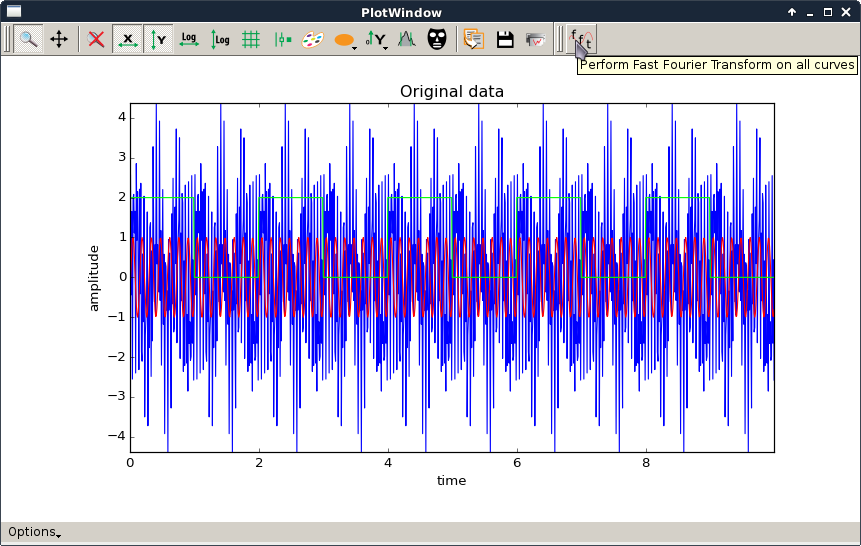

fftPlotAction.py, fft.png		This script is a simple example of how to create a PlotWindow with a custom PlotAction added to the toolbar. The action computes the FFT of all curves and plots their amplitude spectrum. It also performs the reverse transform. This example illustrates: how to create a checkable action how to store user info with a curve in a PlotWindow how to modify the graph title and axes labels how to add your own icon as a PNG file See shiftPlotAction.py for a simpler example with more basic comments.

Add features to PlotWidget

Sample code that adds specific tools or functions to PlotWidget.

Source	Screenshot	Description

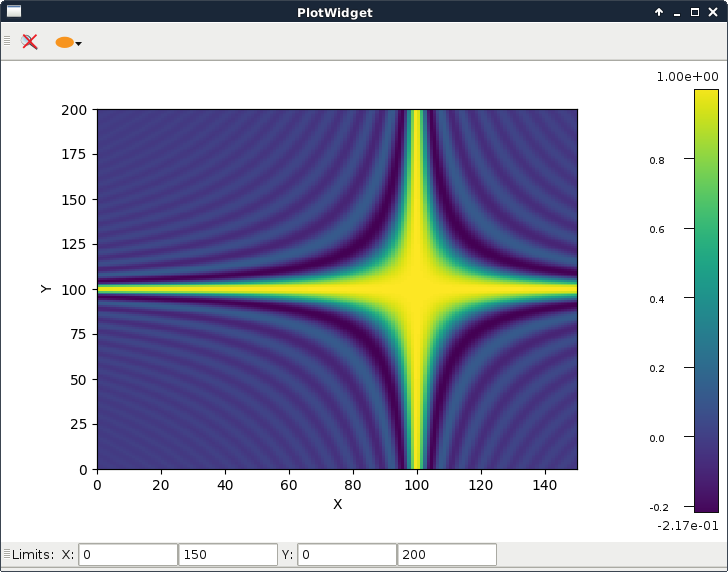

plotWidget.py		This script shows how to create a custom window around a PlotWidget. It subclasses QMainWindow, uses a PlotWidget as its central widget and adds toolbars and a colorbar by using pluggable widgets: PlotWidget from silx.gui.plot QToolBar from silx.gui.plot.tools QAction from silx.gui.plot.actions QToolButton from silx.gui.plot.PlotToolButtons silx.gui.plot.ColorBar.ColorBarWidget

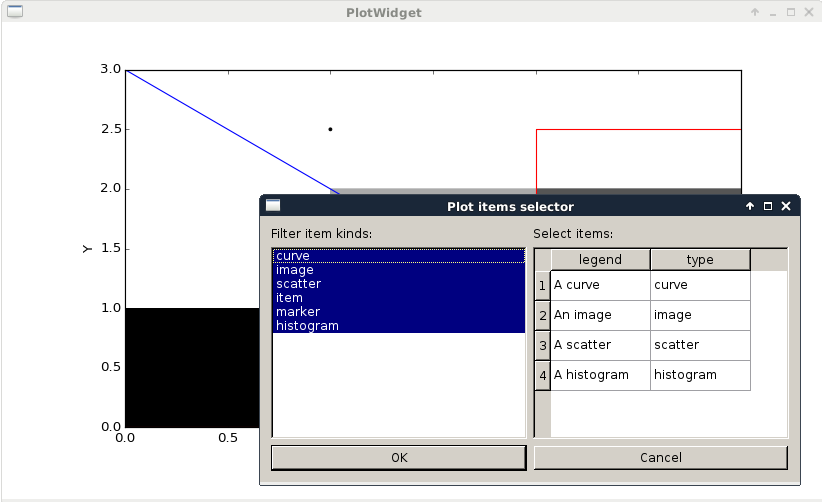

plotItemsSelector.py		This example illustrates how to use a ItemsSelectionDialog widget associated with a PlotWidget

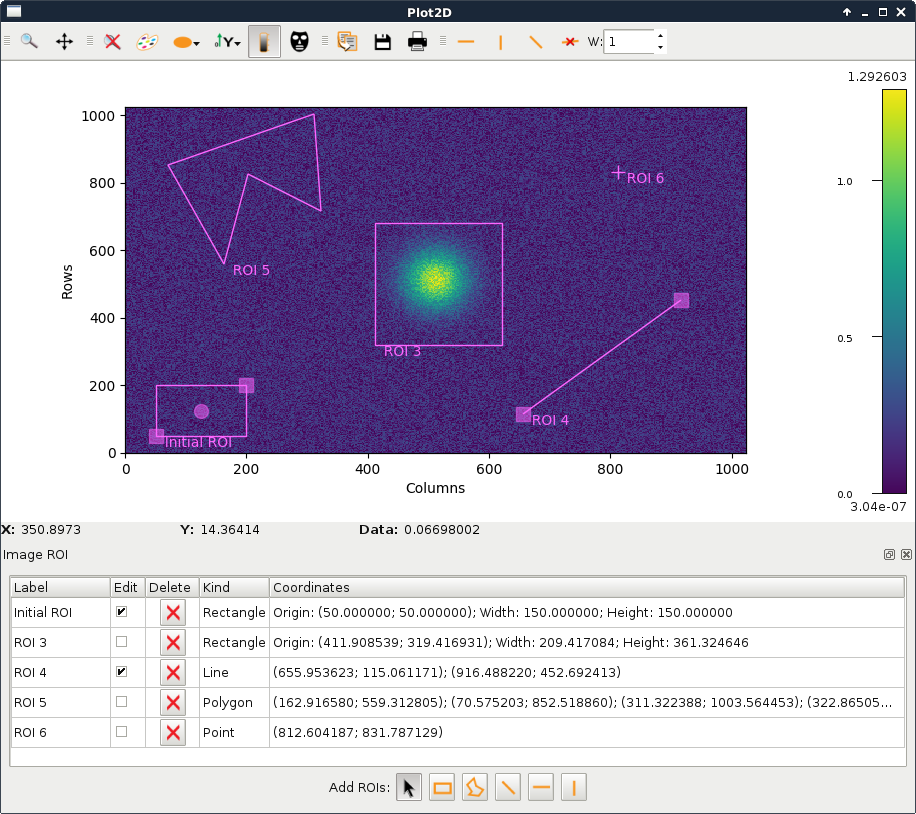

plotInteractiveImageROI.py		This script illustrates image ROI selection in a PlotWidget It uses RegionOfInterestManager and RegionOfInterestTableWidget to handle the interactive selection and to display the list of selected ROIs.

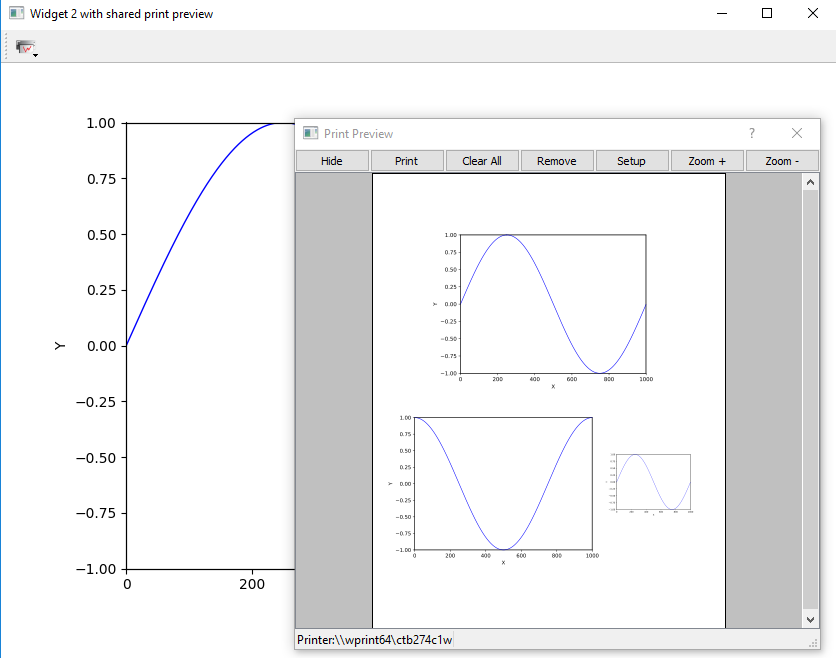

printPreview.py		This script illustrates how to add a print preview tool button to any plot widget inheriting PlotWidget. Three plot widgets are instantiated. One of them uses a standalone PrintPreviewToolButton, while the other two use a SingletonPrintPreviewToolButton which allows them to send their content to the same print preview page.

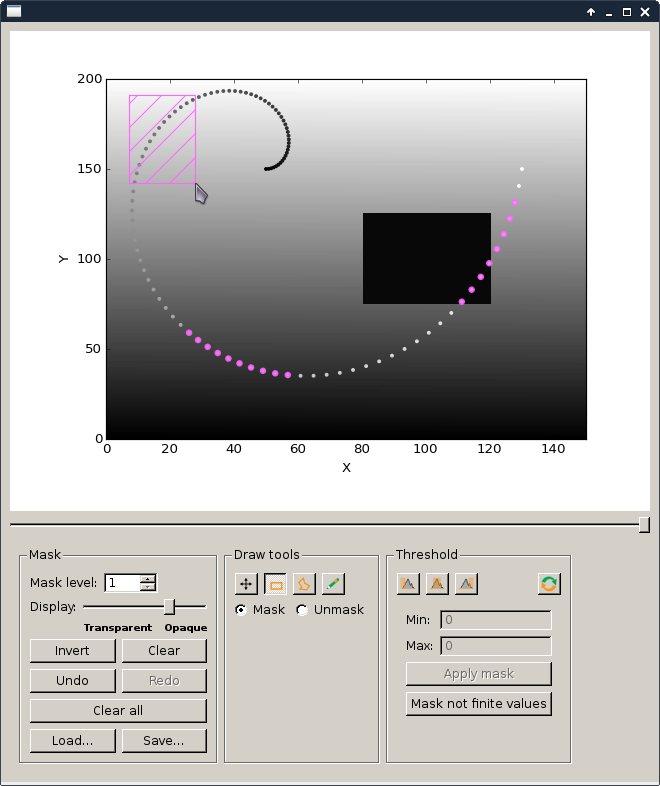

scatterMask.py		This example demonstrates how to use ScatterMaskToolsWidget and NamedScatterAlphaSlider with a PlotWidget.

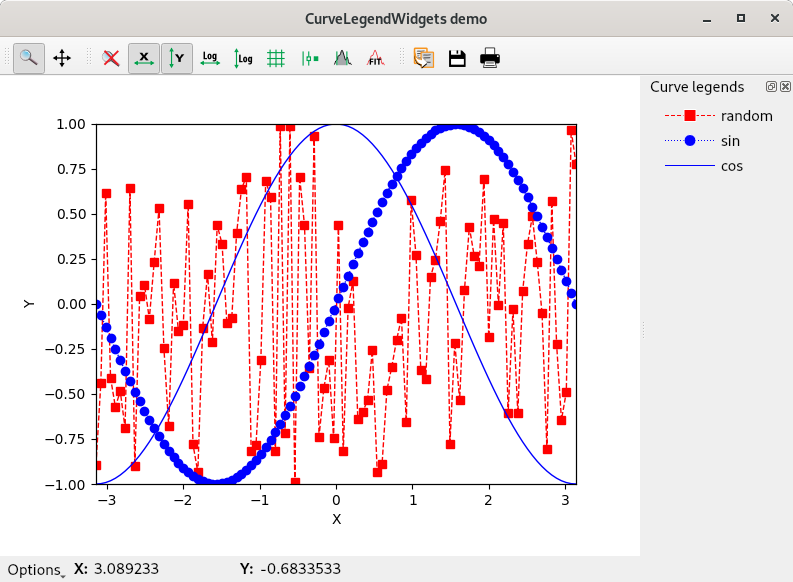

plotCurveLegendWidget.py		This example illustrates the use of CurveLegendsWidget. CurveLegendsWidget display curves style and legend currently visible in a PlotWidget

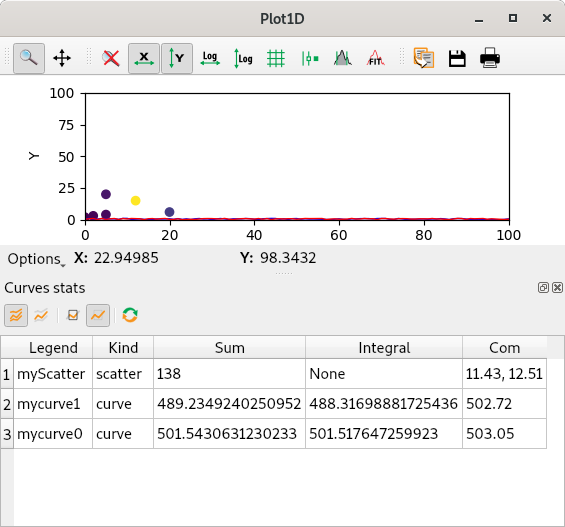

plotStats.py		This script is a simple example of how to add your own statistic to a StatsWidget from customs Stats and display it. On this example we will: show sum of values for each type compute curve integrals (only for ‘curve’). compute center of mass for all possible items Note for now the possible types manged by the Stats are (‘curve’, ‘image’, ‘scatter’ and ‘histogram’)

PlotWidget features

Sample code that illustrates some functionalities of PlotWidget.

Source	Screenshot	Description

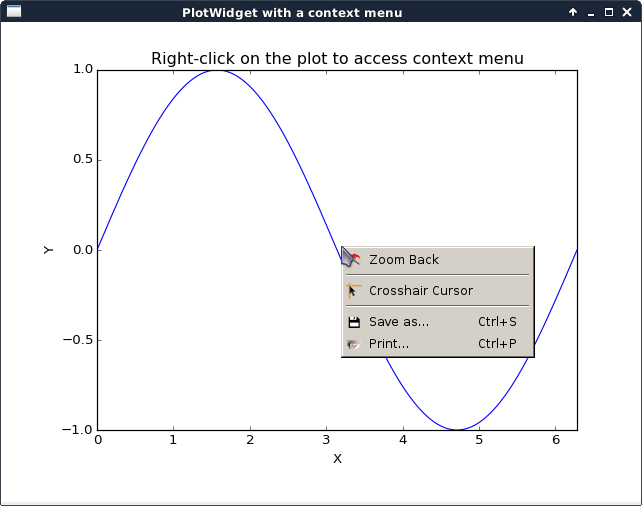

plotContextMenu.py		This script illustrates the addition of a context menu to a PlotWidget. This is done by adding a custom context menu to the plot area of PlotWidget: - set the context menu policy of the plot area to Qt.CustomContextMenu. - connect to the plot area customContextMenuRequested signal. The same method works with PlotWindow, Plot1D and Plot2D widgets as they inherit from PlotWidget. For more information on context menus, see Qt documentation.

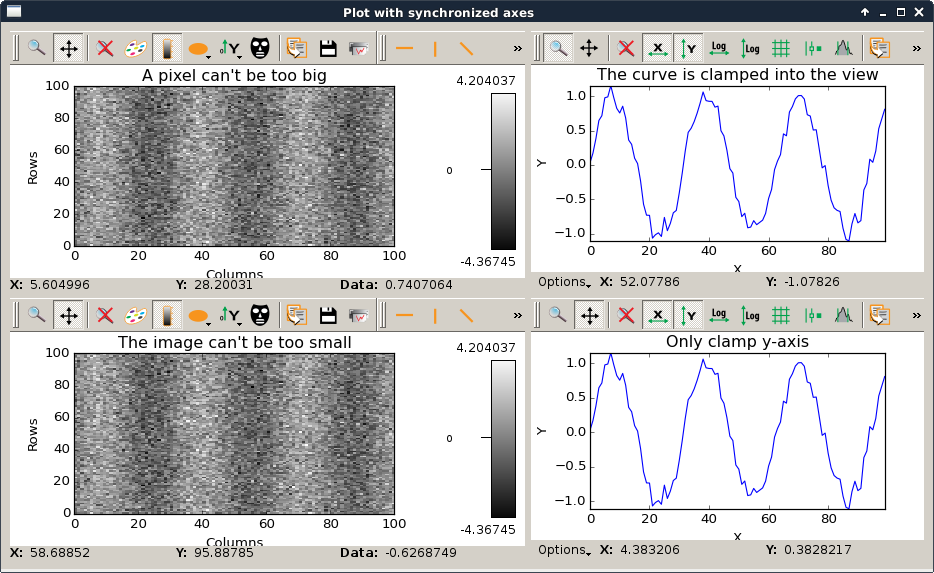

plotLimits.py		This script is an example to illustrate how to use axis synchronization tool.

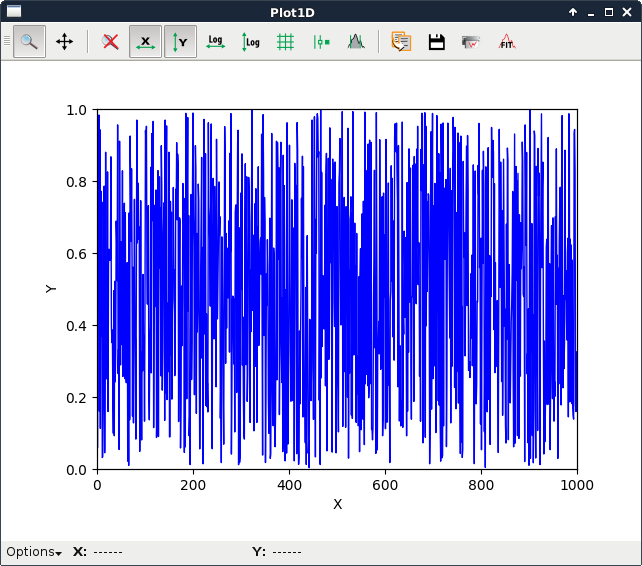

plotUpdateCurveFromThread.py		This script illustrates the update of a silx.gui.plot widget from a thread. The problem is that plot and GUI methods should be called from the main thread. To safely update the plot from another thread, one need to execute the update asynchronously in the main thread. In this example, this is achieved with submitToQtMainThread(). In this example a thread calls submitToQtMainThread to update the curve of a plot.

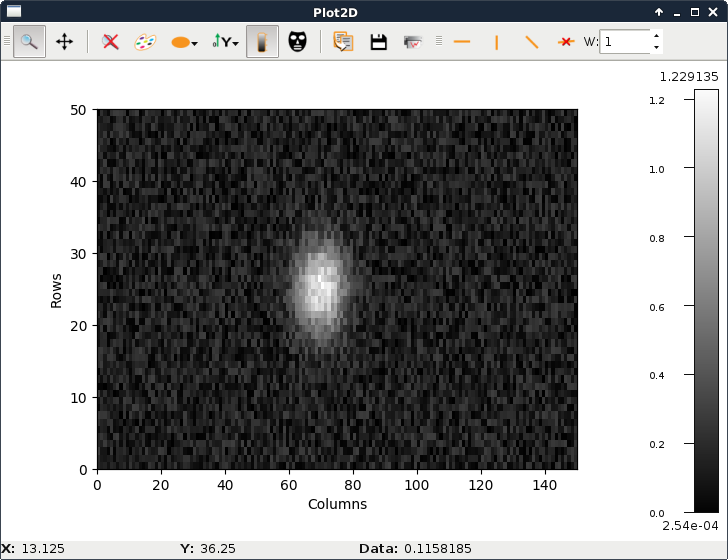

plotUpdateImageFromThread.py		This script illustrates the update of a silx.gui.plot widget from a thread. The problem is that plot and GUI methods should be called from the main thread. To safely update the plot from another thread, one need to execute the update asynchronously in the main thread. In this example, this is achieved with submitToQtMainThread(). In this example a thread calls submitToQtMainThread to update the curve of a plot.

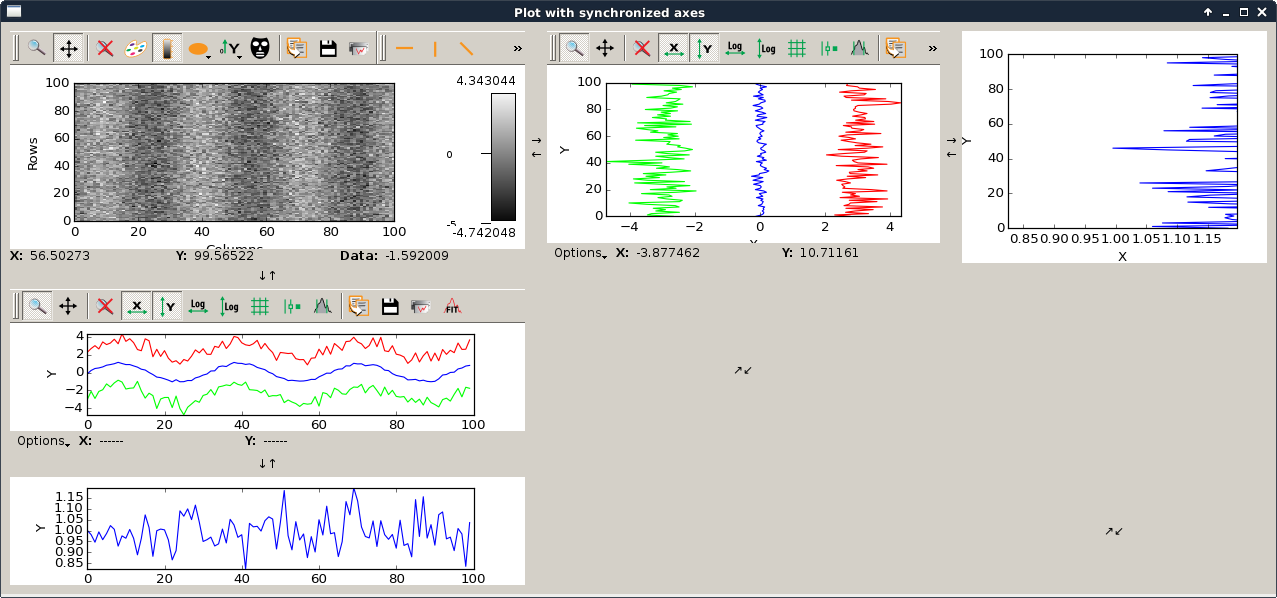

syncaxis.py		This script is an example to illustrate how to use axis synchronization tool.

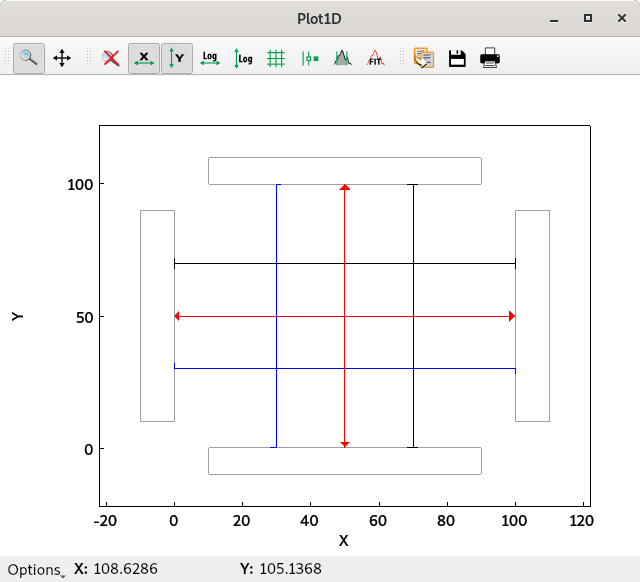

compositeline.py		Example to show the use of markers to draw head and tail of lines.
dropZones.py		Example of drop zone supporting application/x-silx-uri

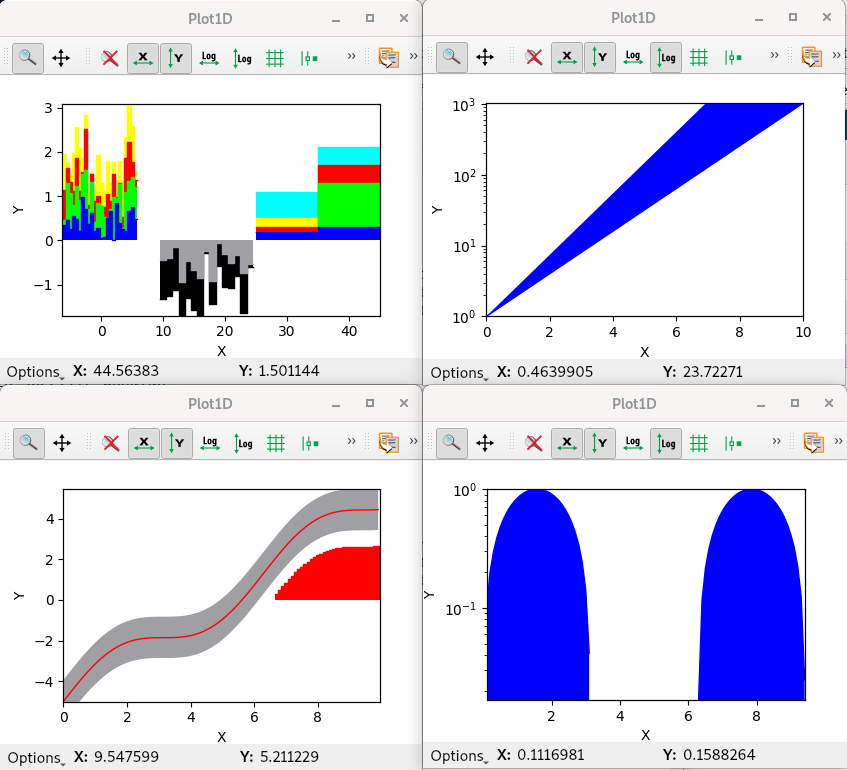

exampleBaseline.py		This example illustrates some usage possible with the baseline parameter

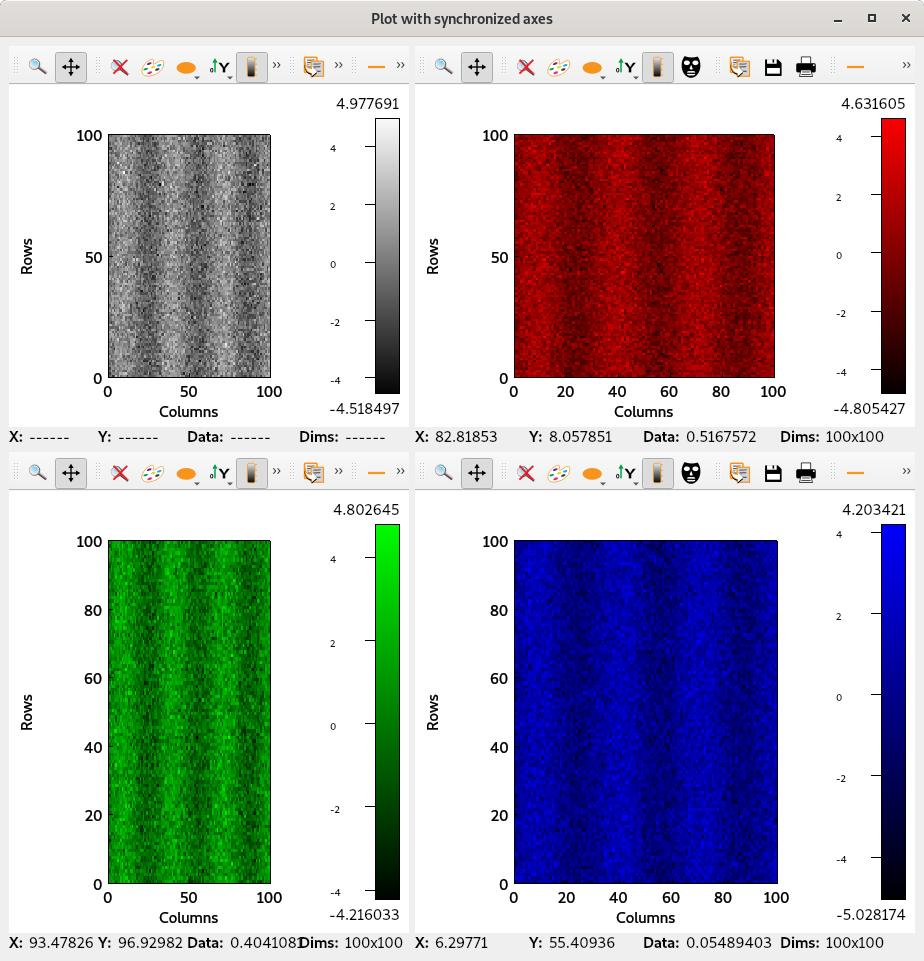

syncPlotLocation.py		This script is an example to illustrate how to use axis synchronization tool.

silx.gui.plot3d sample code

Source	Screenshot	Description

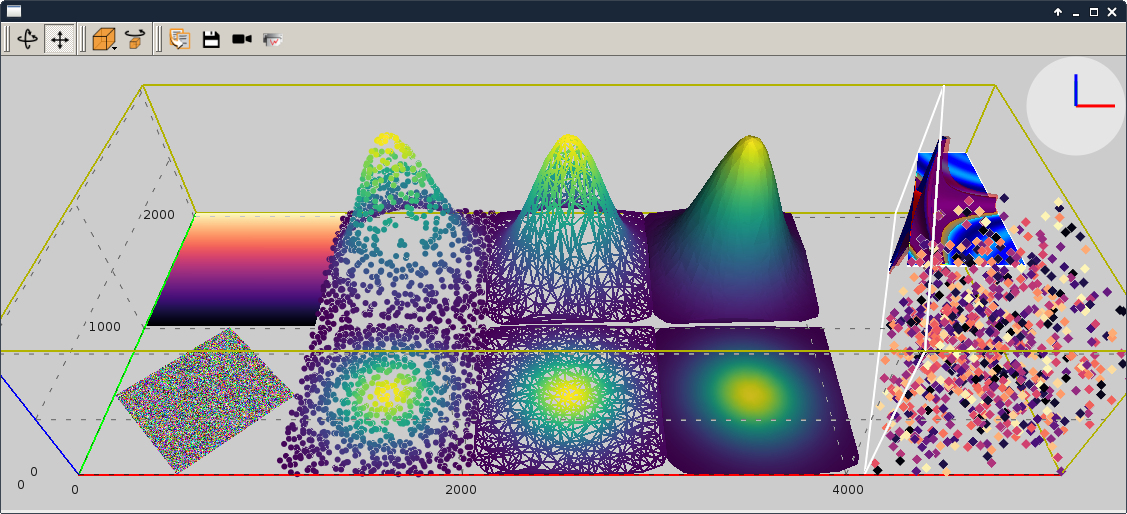

plot3dSceneWindow.py		This script displays the different items of SceneWindow. It shows the different visualizations of SceneWindow and SceneWidget. It illustrates the API to set those items. It features: 2D images: data and RGBA images 2D scatter data, displayed either as markers, wireframe or surface. 3D scatter plot 3D scalar field with iso-surface and cutting plane. A clipping plane.

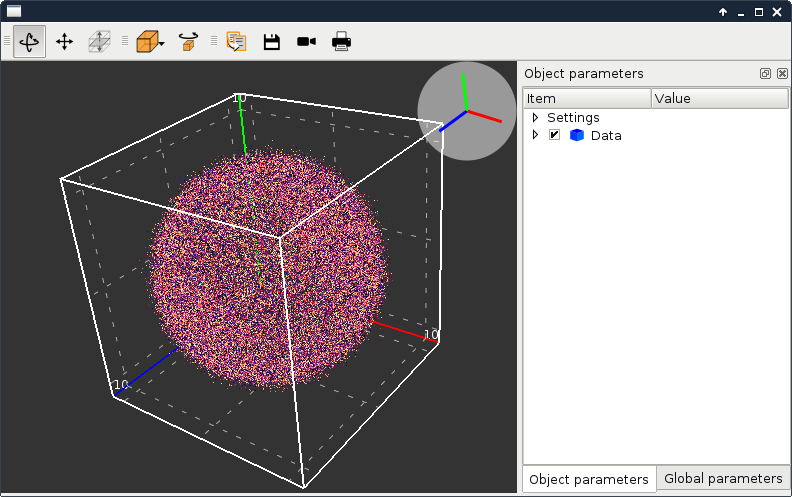

plot3dUpdateScatterFromThread.py		This script illustrates the update of a SceneWindow widget from a thread. The problem is that GUI methods should be called from the main thread. To safely update the scene from another thread, one need to execute the update asynchronously in the main thread. In this example, this is achieved with submitToQtMainThread(). In this example a thread calls submitToQtMainThread to append data to a 3D scatter.

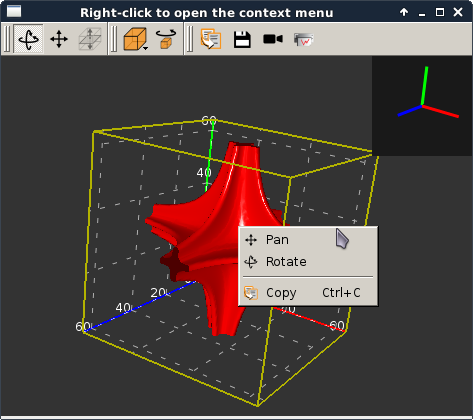

plot3dContextMenu.py		This script adds a context menu to a silx.gui.plot3d.ScalarFieldView. This is done by adding a custom context menu to the Plot3DWidget: set the context menu policy to Qt.CustomContextMenu. connect to the customContextMenuRequested signal. For more information on context menus, see Qt documentation.

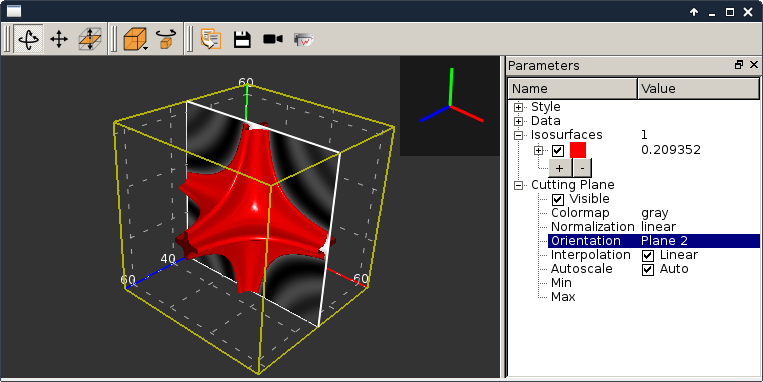

viewer3DVolume.py		This script illustrates the use of silx.gui.plot3d.ScalarFieldView. It loads a 3D scalar data set from a file and displays iso-surfaces and an interactive cutting plane. It can also be started without providing a file.

silx.io sample code

Source	Screenshot	Description
writetoh5.py		This script is an example of how to use the silx.io.convert module. See the following tutorial for more information: Converting various data files to HDF5

silx.image sample code

Source	Screenshot	Description

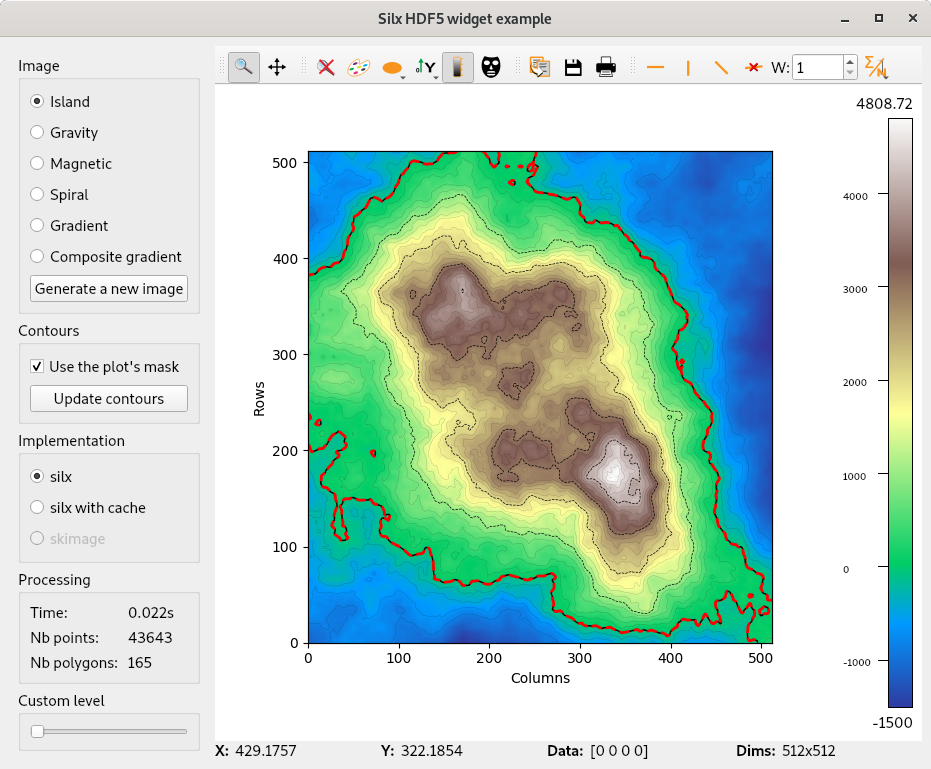

findContours.py		Find contours examples Note This module has an optional dependency with sci-kit image library. You might need to install it if you don’t already have it.
