`plot3d`: 3D Visualisation widgets¶

This package provides widgets displaying 3D content based on OpenGL.

It depends on PyOpenGL and QtOpenGL.

Widgets gallery¶

Widget	Description

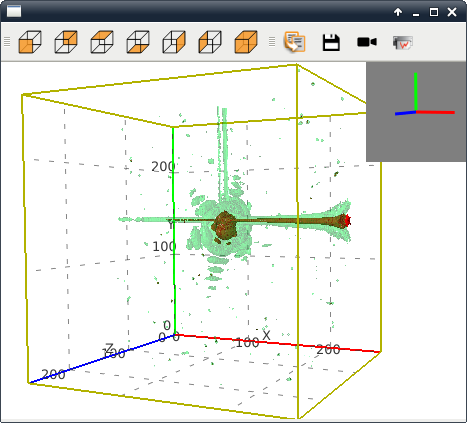

	`ScalarFieldView` is a `Plot3DWindow` dedicated to display 3D scalar field. It can display iso-surfaces and an interactive cutting plane. Sample code: viewer3DVolume.py.

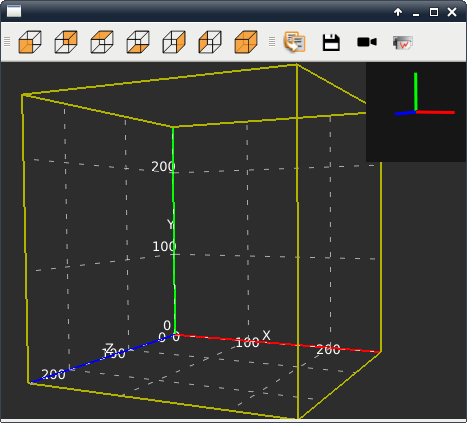

	`Plot3DWindow` is a `QMainWindow` with a `Plot3DWidget` as central widget and toolbars.

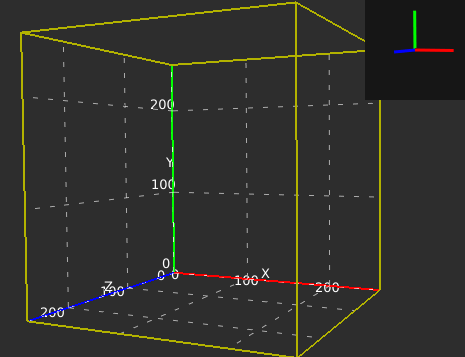

	`Plot3DWidget` is the base Qt widget providing an OpenGL 3D scene. Other widgets are using this widget as the OpenGL scene canvas.

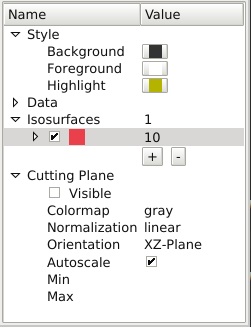

	`SFViewParamTree` is a `QTreeView` widget that can be attached to a `ScalarFieldView`. It displays current parameters of the `ScalarFieldView` and allows to modify it. Sample code: viewer3DVolume.py.
