EDNA Plugin: EDPluginExecOutputHTMLv1_0

Name:EDPluginExecOutputHTMLv1_0
Project:mxv1
Path:mxv1/plugins/EDPluginExecOutputHTML-v1.0/plugins/EDPluginExecOutputHTMLv1_0.py
Author:Olof Svensson
Date:
Copyright:European Synchrotron Radiation Facility, Grenoble, France
License:GPLv3+
Module doc:This plugin is using EDNA2html written by P. Briggs for creating an HTML
page containing the summary of an EDNA MXv1 characterisation.
Class doc:This plugin does not need any input data, it can use its directory hierarchy
for providing the necessary "--run_basename" for EDNA2html. However, if inputs
are provided, then these will be used instead.
There are three optional input parameters:
"title" : The title to use for the strategy
"basename" : The directory where the HTML should go ("_html" is automatically appended)
"workingDir" : The directory containing the EDNA MXv1 application run files
There are two output data items:
"htmlFile" : Path to the generated HTML file
"htmlDir" : Path to the generated HTML directory
In order for this plugin to work the path to the "EDNA2html" package written
by Peter Briggs should either be configured in the plugin configuration
(name=EDNA2html,value=pathToEDNA2html) or the environment variable
"EDNA2html" should be set to this path.
Datamodels: XSDataString, XSDataFile
targetNamespace "http://www.edna-site.org"

package XSDataCommon {

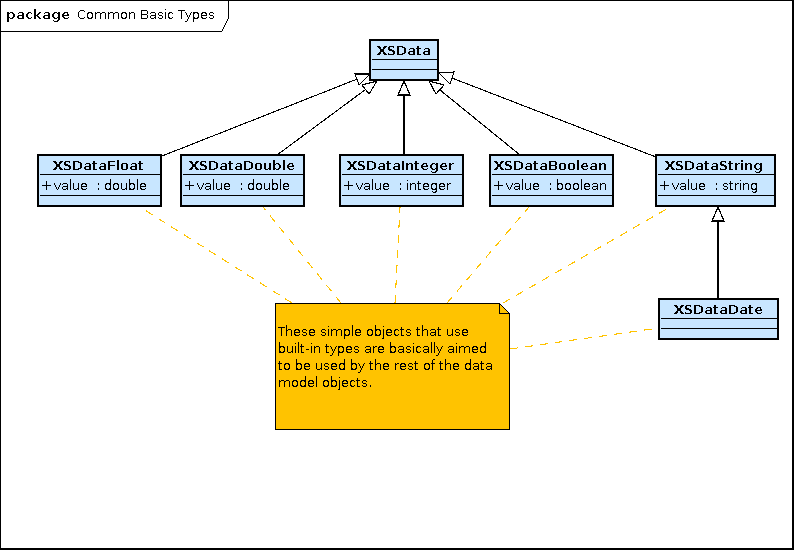

    package CommonBasicTypes {

        complex type XSData {
        }

        complex type XSDataBoolean extends XSData {
            "These simple objects that use built-in types are basically aimed to be used by the rest of the data model objects."
            value : boolean
        }

        complex type XSDataDate extends XSDataString {
            "These simple objects that use built-in types are basically aimed to be used by the rest of the data model objects."
        }

        complex type XSDataDouble extends XSData {
            "These simple objects that use built-in types are basically aimed to be used by the rest of the data model objects."
            value : double
        }

        complex type XSDataFloat extends XSData {
            "These simple objects that use built-in types are basically aimed to be used by the rest of the data model objects."
            value : double
        }

        complex type XSDataInteger extends XSData {
            "These simple objects that use built-in types are basically aimed to be used by the rest of the data model objects."
            value : integer
        }

        complex type XSDataString extends XSData {
            "These simple objects that use built-in types are basically aimed to be used by the rest of the data model objects."
            value : string
        }

    }

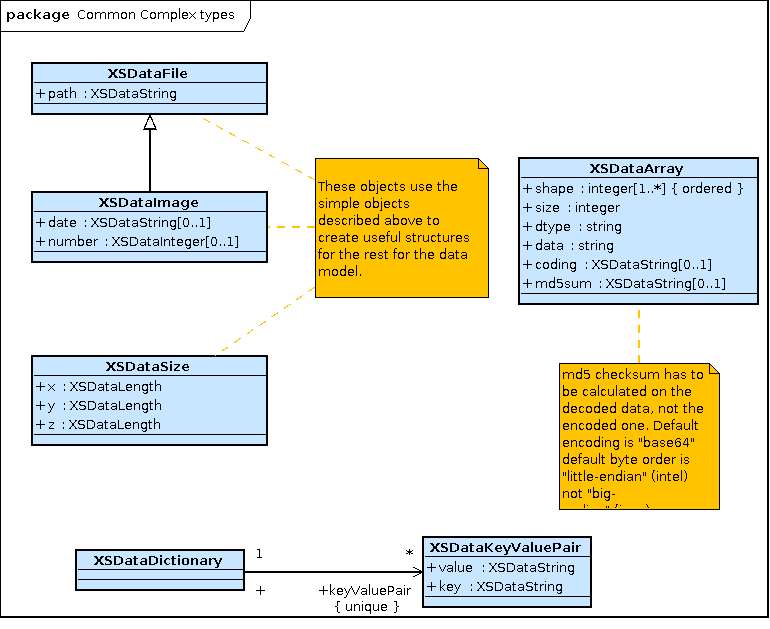

    package CommonComplexTypes {

        complex type XSDataArray extends XSData {
            "md5 checksum has to be calculated on the decoded data, not the encoded one. Default encoding is \"base64\" default byte order is \"little-endian\" (intel) not \"big-endian\" (java)"
            coding : XSDataString optional
            data : string
            dtype : string
            md5sum : XSDataString optional
            shape : integer []
            size : integer
        }

        complex type XSDataDictionary {
            keyValuePair : XSDataKeyValuePair [] optional
        }

        complex type XSDataFile extends XSData {
            "These objects use the simple objects described above to create useful structures for the rest for the data model."
            path : XSDataString
        }

        complex type XSDataImage extends XSDataFile {
            "These objects use the simple objects described above to create useful structures for the rest for the data model."
            date : XSDataString optional
            number : XSDataInteger optional
        }

        complex type XSDataImageExt extends XSDataImage {
            "Represents an image that can either be in a file (path), either inside the XML (array) or as a reference for EDShare (shared) "
            array : XSDataArray optional
            exposureTime : XSDataTime optional
            shared : XSDataString optional
        }

        complex type XSDataKeyValuePair {
            key : XSDataString
            value : XSDataString
        }

        complex type XSDataSize extends XSData {
            "These objects use the simple objects described above to create useful structures for the rest for the data model."
            x : XSDataLength
            y : XSDataLength
            z : XSDataLength
        }

    }

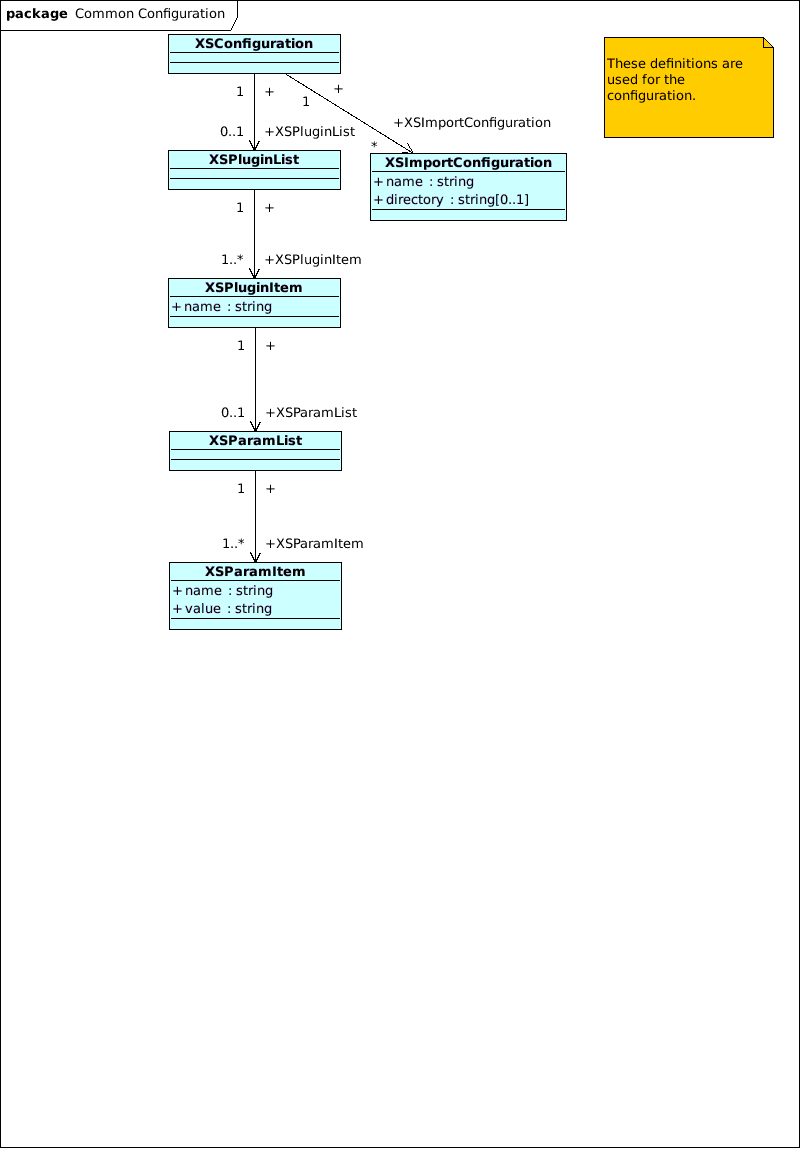

    package CommonConfiguration {

        complex type XSConfiguration {
            XSImportConfiguration : XSImportConfiguration [] optional
            XSPluginList : XSPluginList optional
        }

        complex type XSImportConfiguration {
            directory : string optional
            name : string
        }

        complex type XSParamItem {
            name : string
            value : string
        }

        complex type XSParamList {
            XSParamItem : XSParamItem []
        }

        complex type XSPluginItem {
            XSParamList : XSParamList optional
            name : string
        }

        complex type XSPluginList {
            XSPluginItem : XSPluginItem []
        }

    }

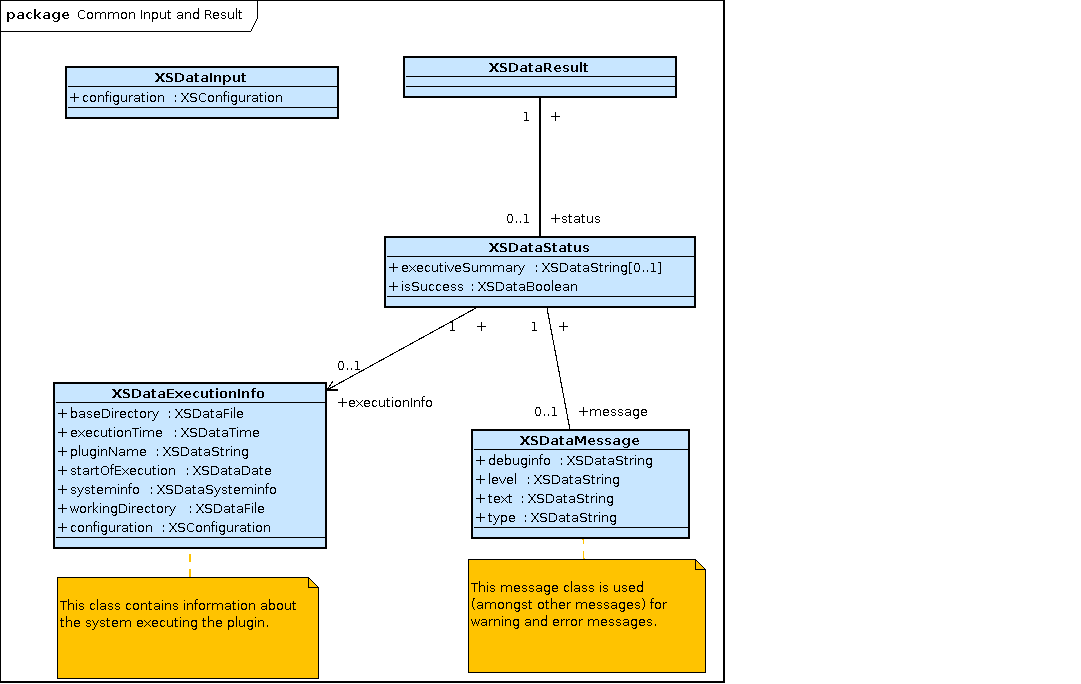

    package CommonInputAndResult {

        complex type XSDataExecutionInfo {
            "This class contains details of the execution of a particular plugin."
            baseDirectory : XSDataFile
            configuration : XSConfiguration
            executionTime : XSDataTime
            pluginName : XSDataString
            startOfExecution : XSDataDate
            systeminfo : XSDataSysteminfo
            workingDirectory : XSDataFile
        }

        complex type XSDataInput extends XSData {
            "All plugin input and result classes should be derived from these two classes."
            configuration : XSConfiguration
            optional
        }

        complex type XSDataMessage extends XSData {
            "This message class is used (amongst other messages) for warning and error messages."
            debuginfo : XSDataString
            level : XSDataString
            text : XSDataString
            ^type : XSDataString
        }

        complex type XSDataResult extends XSData {
            "All plugin input and result classes should be derived from these two classes."
            status : XSDataStatus optional
        }

        complex type XSDataStatus extends XSData {
            "This class contains all data related to the execution of a plugin."
            executionInfo : XSDataExecutionInfo optional
            executiveSummary : XSDataString optional
            isSuccess : XSDataBoolean
            message : XSDataMessage optional
        }

        complex type XSDataSysteminfo extends XSData {
            "This class contains information about the system executing the plugin."
            compiler : XSDataString
            hostIP : XSDataString
            hostName : XSDataString
            operatingSystem : XSDataString
            operatingSystemType : XSDataString
            userName : XSDataString
            virtualMachine : XSDataString
        }

    }

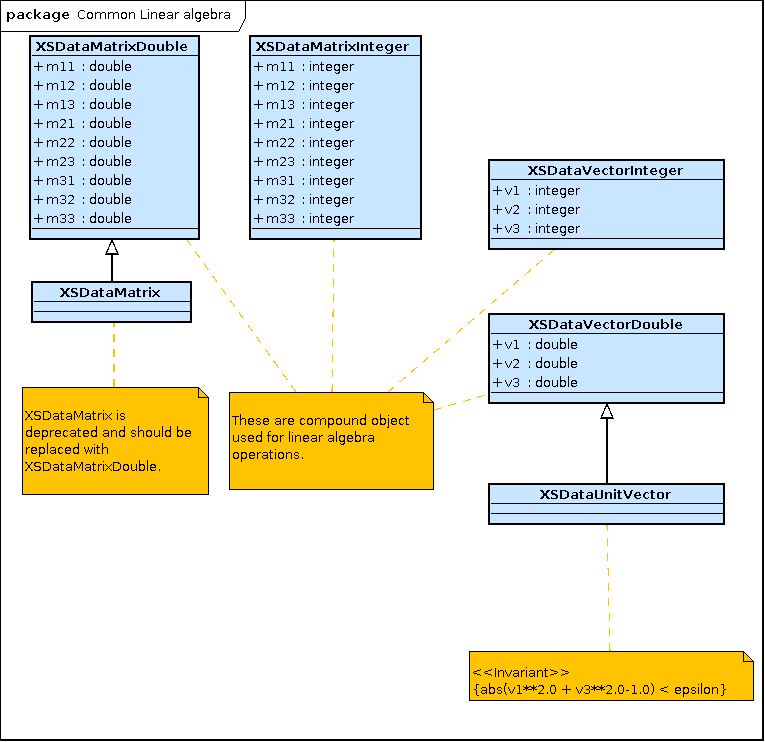

    package CommonLinearAlgebra {

        complex type XSDataMatrix extends XSDataMatrixDouble {
            "XSDataMatrix is deprecated and should be replaced with XSDataMatrixDouble."
        }

        complex type XSDataMatrixDouble extends XSData {
            "These are compound object used for linear algebra operations."
            m11 : double
            m12 : double
            m13 : double
            m21 : double
            m22 : double
            m23 : double
            m31 : double
            m32 : double
            m33 : double
        }

        complex type XSDataMatrixInteger extends XSData {
            "These are compound object used for linear algebra operations."
            m11 : integer
            m12 : integer
            m13 : integer
            m21 : integer
            m22 : integer
            m23 : integer
            m31 : integer
            m32 : integer
            m33 : integer
        }

        complex type XSDataUnitVector extends XSDataVectorDouble {
            "<>\r\n{abs(v1**2.0 + v3**2.0-1.0) < epsilon}"
        }

        complex type XSDataVectorDouble extends XSData {
            "These are compound object used for linear algebra operations."
            v1 : double
            v2 : double
            v3 : double
        }

        complex type XSDataVectorInteger extends XSData {
            "These are compound object used for linear algebra operations."
            v1 : integer
            v2 : integer
            v3 : integer
        }

    }

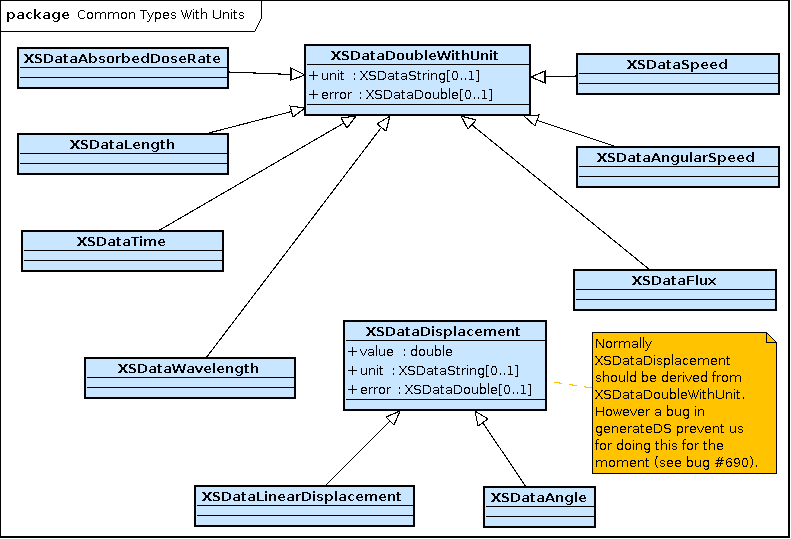

    package CommonTypesWithUnits {

        complex type XSDataAbsorbedDoseRate extends XSDataDoubleWithUnit {
            "These simple objects that use built-in types are basically aimed to be used by the rest of the data model objects."
        }

        complex type XSDataAngle extends XSDataDisplacement {
        }

        complex type XSDataAngularSpeed extends XSDataDoubleWithUnit {
            "These simple objects that use built-in types are basically aimed to be used by the rest of the data model objects."
        }

        complex type XSDataDisplacement extends XSDataDoubleWithUnit {
            "These simple objects that use built-in types are basically aimed to be used by the rest of the data model objects."
        }

        complex type XSDataDoubleWithUnit extends XSDataDouble {
            error : XSDataDouble optional
            unit : XSDataString optional
        }

        complex type XSDataFlux extends XSDataDoubleWithUnit {
            "These simple objects that use built-in types are basically aimed to be used by the rest of the data model objects."
        }

        complex type XSDataLength extends XSDataDoubleWithUnit {
            "These simple objects that use built-in types are basically aimed to be used by the rest of the data model objects."
        }

        complex type XSDataLinearDisplacement extends XSDataDisplacement {
        }

        complex type XSDataRotation extends XSData {
            "These are compound object used for linear algebra operations."
            q0 : double
            q1 : double
            q2 : double
            q3 : double
        }

        complex type XSDataSpeed extends XSDataDoubleWithUnit {
            "These simple objects that use built-in types are basically aimed to be used by the rest of the data model objects."
        }

        complex type XSDataTime extends XSDataDoubleWithUnit {
            "These simple objects that use built-in types are basically aimed to be used by the rest of the data model objects."
        }

        complex type XSDataWavelength extends XSDataDoubleWithUnit {
            "These simple objects that use built-in types are basically aimed to be used by the rest of the data model objects."
        }

    }

}
