StatsWidget
: Display a set of statictics for plot items¶
Module containing widgets displaying stats from items of a plot.
StatsWidget
class¶
- class StatsWidget(parent=None, plot=None, stats=None)[source]¶
Bases:
QWidget
Widget displaying a set of
Stat
to be displayed on aStatsTable
and to be apply on items contained in thePlot
Also contains options to:compute statistics on all the data or on visible data only
show statistics of all items or only the active one
- Parameters
parent (QWidget) – Qt parent
plot (Union[PlotWidget,SceneWidget]) – The plot containing items on which we want statistics.
stats (StatsHandler) – Set the statistics to be displayed and how to format them using
- sigVisibilityChanged¶
Signal emitted when the visibility of this widget changes.
It Provides the visibility of the widget.
- setStats(statsHandler)[source]¶
Set which stats to display and the associated formatting.
- Parameters
statsHandler (StatsHandler) – Set the statistics to be displayed and how to format them using
- setPlot(plot)[source]¶
Define the plot to interact with
- Parameters
plot (Union[PlotWidget,SceneWidget,None]) – The plot containing the items on which statistics are applied
- getPlot()[source]¶
Returns the plot attached to this widget
- Return type
Union[PlotWidget,SceneWidget,None]
- setDisplayOnlyActiveItem(displayOnlyActItem)[source]¶
Toggle display off all items or only the active/selected one
- Parameters
displayOnlyActItem (bool) – True if we want to only show active item
- setStatsOnVisibleData(b)[source]¶
Toggle computation of statistics on whole data or only visible ones.
Warning
When visible data is activated we will process to a simple filtering of visible data by the user. The filtering is a simple data sub-sampling. No interpolation is made to fit data to boundaries.
- Parameters
b (bool) – True if we want to apply statistics only on visible data
- getUpdateMode()[source]¶
Returns update mode (See
setUpdateMode()
).- Returns
update mode
- Return type
UpdateMode
BasicStatsWidget
class¶
- class BasicStatsWidget(parent=None, plot=None)[source]¶
Bases:
StatsWidget
Widget defining a simple set of
Stat
to be displayed on aStatsWidget
.- Parameters
parent (QWidget) – Qt parent
plot (PlotWidget) – The plot containing items on which we want statistics.
stats (StatsHandler) – Set the statistics to be displayed and how to format them using
StatsTable
class¶
- class StatsTable(parent=None, plot=None)[source]¶
Bases:
_StatsWidgetBase
,TableWidget
TableWidget displaying for each items contained by the Plot some information:
legend
minimal value
maximal value
standard deviation (std)
- Parameters
parent (QWidget) – The widget’s parent.
plot (Union[PlotWidget,SceneWidget]) –
PlotWidget
orSceneWidget
instance on which to operate
- sigUpdateModeChanged¶
Signal emitted when the update mode changed
- setStats(statsHandler)[source]¶
Set which stats to display and the associated formatting.
- Parameters
statsHandler (StatsHandler) – Set the statistics to be displayed and how to format them using
- setPlot(plot)[source]¶
Define the plot to interact with
- Parameters
plot (Union[PlotWidget,SceneWidget,None]) – The plot containing the items on which statistics are applied
- clear()[source]¶
Define the plot to interact with
- Parameters
plot (Union[PlotWidget,SceneWidget,None]) – The plot containing the items on which statistics are applied
BasicLineStatsWidget
class¶
- class BasicLineStatsWidget(parent=None, plot=None, kind='curve', stats=<silx.gui.plot.stats.statshandler.StatsHandler object>, statsOnVisibleData=False)[source]¶
Bases:
QWidget
Widget defining a simple set of
Stat
to be displayed on aLineStatsWidget
.- Parameters
parent (QWidget) – Qt parent
plot (Union[PlotWidget,SceneWidget]) – The plot containing items on which we want statistics.
kind (str) – the kind of plotitems we want to display
stats (StatsHandler) – Set the statistics to be displayed and how to format them using
statsOnVisibleData (bool) – compute statistics for the whole data or only visible ones.
- setUpdateMode(mode)[source]¶
Set the way to update the displayed statistics.
- Parameters
mode (Union[str,UpdateMode]) – mode requested for update
- getUpdateMode()[source]¶
Returns update mode (See
setUpdateMode()
).- Returns
update mode
- Return type
UpdateMode
- setPlot(plot)[source]¶
Define the plot to interact with
- Parameters
plot (Union[PlotWidget,SceneWidget,None]) – The plot containing the items on which statistics are applied
- setStats(statsHandler)[source]¶
Set which stats to display and the associated formatting.
- Parameters
statsHandler (StatsHandler) – Set the statistics to be displayed and how to format them using
- setKind(kind)[source]¶
Change the kind of active item to display :param str kind: kind of item to display information for (‘curve’ …)
- setStatsOnVisibleData(b)[source]¶
Toggle computation of statistics on whole data or only visible ones.
Warning
When visible data is activated we will process to a simple filtering of visible data by the user. The filtering is a simple data sub-sampling. No interpolation is made to fit data to boundaries.
- Parameters
b (bool) – True if we want to apply statistics only on visible data

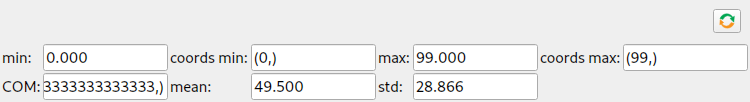

BasicGridStatsWidget
class¶
- class BasicGridStatsWidget(parent=None, plot=None, kind='curve', stats=<silx.gui.plot.stats.statshandler.StatsHandler object>, statsOnVisibleData=False)[source]¶
Bases:
QWidget
pymca design like widget
- Parameters
parent (QWidget) – Qt parent
plot (Union[PlotWidget,SceneWidget]) – The plot containing items on which we want statistics.
stats (StatsHandler) – Set the statistics to be displayed and how to format them using
kind (str) – the kind of plotitems we want to display
statsOnVisibleData (bool) – compute statistics for the whole data or only visible ones.
statsPerLine (int) – number of statistic to be displayed per line
- setUpdateMode(mode)[source]¶
Set the way to update the displayed statistics.
- Parameters
mode (Union[str,UpdateMode]) – mode requested for update
- getUpdateMode()[source]¶
Returns update mode (See
setUpdateMode()
).- Returns
update mode
- Return type
UpdateMode
- setPlot(plot)[source]¶
Define the plot to interact with
- Parameters
plot (Union[PlotWidget,SceneWidget,None]) – The plot containing the items on which statistics are applied
- setStats(statsHandler)[source]¶
Set which stats to display and the associated formatting.
- Parameters
statsHandler (StatsHandler) – Set the statistics to be displayed and how to format them using
- setKind(kind)[source]¶
Change the kind of active item to display :param str kind: kind of item to display information for (‘curve’ …)
- setStatsOnVisibleData(b)[source]¶
Toggle computation of statistics on whole data or only visible ones.
Warning
When visible data is activated we will process to a simple filtering of visible data by the user. The filtering is a simple data sub-sampling. No interpolation is made to fit data to boundaries.
- Parameters
b (bool) – True if we want to apply statistics only on visible data
