tools: Tool widgets for PlotWidget

This package provides a set of widgets working with PlotWidget.

It provides some QToolBar and QWidget:

It also provides a roi module to handle interactive region of interest on a PlotWidget.

PositionInfo class

class silx.gui.plot.tools.PositionInfo(parent=None, plot=None, converters=None)[source]

Bases: PyQt5.QtWidgets.QWidget

QWidget displaying coords converted from data coords of the mouse.

Provide this widget with a list of couple:

  • A name to display before the data
  • A function that takes (x, y) as arguments and returns something that gets converted to a string. If the result is a float it is converted with ‘%.7g’ format.

To run the following sample code, a QApplication must be initialized. First, create a PlotWindow and add a QToolBar where to place the PositionInfo widget.

>>> from silx.gui.plot import PlotWindow
>>> from silx.gui import qt

>>> plot = PlotWindow()  # Create a PlotWindow to add the widget to
>>> toolBar = qt.QToolBar()  # Create a toolbar to place the widget in
>>> plot.addToolBar(qt.Qt.BottomToolBarArea, toolBar)  # Add it to plot

Then, create the PositionInfo widget and add it to the toolbar. The PositionInfo widget is created with a list of converters, here to display polar coordinates of the mouse position.

>>> import numpy
>>> from silx.gui.plot.tools import PositionInfo

>>> position = PositionInfo(plot=plot, converters=[
...     ('Radius', lambda x, y: numpy.sqrt(x*x + y*y)),
...     ('Angle', lambda x, y: numpy.degrees(numpy.arctan2(y, x)))])
>>> toolBar.addWidget(position)  # Add the widget to the toolbar
<...>
>>> plot.show()  # To display the PlotWindow with the position widget
Parameters:
  • plot – The PlotWidget this widget is displaying data coords from.
  • converters – List of 2-tuple: name to display and conversion function from (x, y) in data coords to displayed value. If None, the default, it displays X and Y.
  • parent – Parent widget
getPlotWidget()[source]

Returns the PlotWidget this widget is attached to or None.

Return type:Union[~silx.gui.plot.PlotWidget,None]
getConverters()[source]

Return the list of converters as 2-tuple (name, function).

updateInfo()[source]

Update displayed information

SNAPPING_DISABLED = 0

No snapping occurs

SNAPPING_CROSSHAIR = 1

Snapping only enabled when crosshair cursor is enabled

SNAPPING_ACTIVE_ONLY = 2

Snapping only enabled for active item

SNAPPING_SYMBOLS_ONLY = 4

Snapping only when symbols are visible

SNAPPING_CURVE = 8

Snapping on curves

SNAPPING_SCATTER = 16

Snapping on scatter

setSnappingMode(mode)[source]

Set the snapping mode.

The mode is a mask.

Parameters:mode (int) – The mode to use
getSnappingMode()[source]

Returns the snapping mode as a mask

Return type:int

LimitsToolBar class

class silx.gui.plot.tools.LimitsToolBar(parent=None, plot=None, title='Limits')[source]

Bases: PyQt5.QtWidgets.QToolBar

QToolBar displaying and controlling the limits of a PlotWidget.

To run the following sample code, a QApplication must be initialized. First, create a PlotWindow:

>>> from silx.gui.plot import PlotWindow
>>> plot = PlotWindow()  # Create a PlotWindow to add the toolbar to

Then, create the LimitsToolBar and add it to the PlotWindow.

>>> from silx.gui import qt
>>> from silx.gui.plot.tools import LimitsToolBar

>>> toolbar = LimitsToolBar(plot=plot)  # Create the toolbar
>>> plot.addToolBar(qt.Qt.BottomToolBarArea, toolbar)  # Add it to the plot
>>> plot.show()  # To display the PlotWindow with the limits toolbar
Parameters:
  • parent – See QToolBar.
  • plot – PlotWidget instance on which to operate.
  • title (str) – See QToolBar.
plot

The PlotWidget the toolbar is attached to.

InteractiveModeToolBar class

class silx.gui.plot.tools.InteractiveModeToolBar(parent=None, plot=None, title='Plot Interaction')[source]

Bases: PyQt5.QtWidgets.QToolBar

Toolbar with interactive mode actions

Parameters:
  • parent – See QWidget
  • plot (silx.gui.plot.PlotWidget) – PlotWidget to control
  • title (str) – Title of the toolbar.
getZoomModeAction()[source]

Returns the zoom mode QAction.

Return type:PlotAction
getPanModeAction()[source]

Returns the pan mode QAction

Return type:PlotAction

OutputToolBar class

class silx.gui.plot.tools.OutputToolBar(parent=None, plot=None, title='Plot Output')[source]

Bases: PyQt5.QtWidgets.QToolBar

Toolbar providing icons to copy, save and print a PlotWidget

Parameters:
  • parent – See QWidget
  • plot (silx.gui.plot.PlotWidget) – PlotWidget to control
  • title (str) – Title of the toolbar.
getCopyAction()[source]

Returns the QAction performing copy to clipboard of the PlotWidget

Return type:PlotAction
getSaveAction()[source]

Returns the QAction performing save to file of the PlotWidget

Return type:PlotAction
getPrintAction()[source]

Returns the QAction performing printing of the PlotWidget

Return type:PlotAction

ImageToolBar class

class silx.gui.plot.tools.ImageToolBar(parent=None, plot=None, title='Image')[source]

Bases: PyQt5.QtWidgets.QToolBar

Toolbar providing PlotAction suited when displaying images

Parameters:
  • parent – See QWidget
  • plot (silx.gui.plot.PlotWidget) – PlotWidget to control
  • title (str) – Title of the toolbar.
getResetZoomAction()[source]

Returns the QAction to reset the zoom.

Return type:PlotAction
getColormapAction()[source]

Returns the QAction to control the colormap.

Return type:PlotAction
getKeepDataAspectRatioButton()[source]

Returns the QToolButton controlling data aspect ratio.

Return type:QToolButton
getYAxisInvertedButton()[source]

Returns the QToolButton controlling Y axis orientation.

Return type:QToolButton

CurveToolBar class

class silx.gui.plot.tools.CurveToolBar(parent=None, plot=None, title='Image')[source]

Bases: PyQt5.QtWidgets.QToolBar

Toolbar providing PlotAction suited when displaying curves

Parameters:
  • parent – See QWidget
  • plot (silx.gui.plot.PlotWidget) – PlotWidget to control
  • title (str) – Title of the toolbar.
getResetZoomAction()[source]

Returns the QAction to reset the zoom.

Return type:PlotAction
getXAxisAutoScaleAction()[source]

Returns the QAction to toggle X axis autoscale.

Return type:PlotAction
getYAxisAutoScaleAction()[source]

Returns the QAction to toggle Y axis autoscale.

Return type:PlotAction
getXAxisLogarithmicAction()[source]

Returns the QAction to toggle X axis log/linear scale.

Return type:PlotAction
getYAxisLogarithmicAction()[source]

Returns the QAction to toggle Y axis log/linear scale.

Return type:PlotAction
getGridAction()[source]

Returns the action to toggle the plot grid.

Return type:PlotAction
getCurveStyleAction()[source]

Returns the QAction to change the style of all curves.

Return type:PlotAction

ScatterToolBar class

class silx.gui.plot.tools.ScatterToolBar(parent=None, plot=None, title='Scatter Tools')[source]

Bases: PyQt5.QtWidgets.QToolBar

Toolbar providing PlotAction suited when displaying scatter plot

Parameters:
  • parent – See QWidget
  • plot (silx.gui.plot.PlotWidget) – PlotWidget to control
  • title (str) – Title of the toolbar.
getResetZoomAction()[source]

Returns the QAction to reset the zoom.

Return type:PlotAction
getXAxisLogarithmicAction()[source]

Returns the QAction to toggle X axis log/linear scale.

Return type:PlotAction
getYAxisLogarithmicAction()[source]

Returns the QAction to toggle Y axis log/linear scale.

Return type:PlotAction
getGridAction()[source]

Returns the action to toggle the plot grid.

Return type:PlotAction
getColormapAction()[source]

Returns the QAction to control the colormap.

Return type:PlotAction
getSymbolToolButton()[source]

Returns the QToolButton controlling symbol size and marker.

Return type:SymbolToolButton
getKeepDataAspectRatioButton()[source]

Returns the QToolButton controlling data aspect ratio.

Return type:QToolButton

roi: Region of interest

This module provides ROI interaction for PlotWidget.

RegionOfInterestManager class

class silx.gui.plot.tools.roi.RegionOfInterestManager(parent)[source]

Class handling ROI interaction on a PlotWidget.

It supports the multiple ROIs: points, rectangles, polygons, lines, horizontal and vertical lines.

See plotInteractiveImageROI.py sample code (Sample Code).

Parameters:parent (silx.gui.plot.PlotWidget) – The plot widget in which to control the ROIs.
sigRoiAdded

Signal emitted when a new ROI has been added.

It provides the newly add RegionOfInterest object.

sigRoiAboutToBeRemoved

Signal emitted just before a ROI is removed.

It provides the RegionOfInterest object that is about to be removed.

sigRoiChanged

Signal emitted whenever the ROIs have changed.

sigInteractiveModeStarted

Signal emitted when switching to ROI drawing interactive mode.

It provides the class of the ROI which will be created by the interactive mode.

sigInteractiveModeFinished

Signal emitted when leaving and interactive ROI drawing.

It provides the list of ROIs.

classmethod getSupportedRoiClasses()[source]

Returns the default available ROI classes

Return type:List[class]
getInteractionModeAction(roiClass)[source]

Returns the QAction corresponding to a kind of ROI

The QAction allows to enable the corresponding drawing interactive mode.

Parameters:roiClass (str) – The ROI class which will be crated by this action.
Return type:QAction
Raises:ValueError – If kind is not supported
getRois()[source]

Returns the list of ROIs.

It returns an empty tuple if there is currently no ROI.

Returns:Tuple of arrays of objects describing the ROIs
Return type:List[RegionOfInterest]
clear()[source]

Reset current ROIs

Returns:True if ROIs were reset.
Return type:bool
createRoi(roiClass, points, label='', index=None)[source]

Create a new ROI and add it to list of ROIs.

Parameters:
  • roiClass (class) – The class of the ROI to create
  • points (numpy.ndarray) – The first shape used to create the ROI
  • label (str) – The label to display along with the ROI.
  • index (int) – The position where to insert the ROI. By default it is appended to the end of the list.
Returns:

The created ROI object
Return type:

roi_items.RegionOfInterest
Raises:

RuntimeError – When ROI cannot be added because the maximum number of ROIs has been reached.
addRoi(roi, index=None, useManagerColor=True)[source]

Add the ROI to the list of ROIs.

Parameters:
  • roi (roi_items.RegionOfInterest) – The ROI to add
  • index (int) – The position where to insert the ROI, By default it is appended to the end of the list of ROIs
Raises:

RuntimeError – When ROI cannot be added because the maximum number of ROIs has been reached.
removeRoi(roi)[source]

Remove a ROI from the list of ROIs.

Parameters:roi (roi_items.RegionOfInterest) – The ROI to remove
Raises:ValueError – When ROI does not belong to this object
getColor()[source]

Return the default color of created ROIs

Return type:QColor
setColor(color)[source]

Set the default color to use when creating ROIs.

Existing ROIs are not affected.

Parameters:color – The color to use for displaying ROIs as either a color name, a QColor, a list of uint8 or float in [0, 1].
getCurrentInteractionModeRoiClass()[source]

Returns the current ROI class used by the interactive drawing mode.

Returns None if the ROI manager is not in an interactive mode.

Return type:Union[class,None]
isStarted()[source]

Returns True if an interactive ROI drawing mode is active.

Return type:bool
start(roiClass)[source]

Start an interactive ROI drawing mode.

Parameters:roiClass (class) – The ROI class to create. It have to inherite from roi_items.RegionOfInterest.
Returns:True if interactive ROI drawing was started, False otherwise
Return type:bool
Raises:ValueError – If roiClass is not supported
stop()[source]

Stop interactive ROI drawing mode.

Returns:True if an interactive ROI drawing mode was actually stopped
Return type:bool
exec_(roiClass)[source]

Block until quit() is called.

Parameters:kind (class) – The class of the ROI which have to be created. See silx.gui.plot.items.roi.
Returns:The list of ROIs
Return type:tuple
quit()[source]

Stop a blocking exec_() and call stop()

InteractiveRegionOfInterestManager class

class silx.gui.plot.tools.roi.InteractiveRegionOfInterestManager(parent)[source]

RegionOfInterestManager with features for use from interpreter.

It is meant to be used through the exec_(). It provides some messages to display in a status bar and different modes to end blocking calls to exec_().

Parameters:parent – See QObject
sigMessageChanged

Signal emitted when a new message should be displayed to the user

It provides the message as a str.

getMaxRois()[source]

Returns the maximum number of ROIs or None if no limit.

Return type:Union[int,None]
setMaxRois(max_)[source]

Set the maximum number of ROIs.

Parameters:max (Union[int,None]) – The max limit or None for no limit.
Raises:ValueError – If there is more ROIs than max value
isMaxRois()[source]

Returns True if the maximum number of ROIs is reached.

Return type:bool
class ValidationMode[source]

Mode of validation to leave blocking exec_()

AUTO = <ValidationMode.AUTO: 'auto'>

Automatically ends the interactive mode once the user terminates the last ROI shape.

ENTER = <ValidationMode.ENTER: 'enter'>

Ends the interactive mode when the Enter key is pressed.

AUTO_ENTER = <ValidationMode.AUTO_ENTER: 'auto_enter'>

Ends the interactive mode when reaching max ROIs or when the Enter key is pressed.

NONE = <ValidationMode.NONE: 'none'>

Do not provide the user a way to end the interactive mode.

The end of exec_() is done through quit() or timeout.

InteractiveRegionOfInterestManager.getValidationMode()[source]

Returns the interactive mode validation in use.

Return type:ValidationMode
InteractiveRegionOfInterestManager.setValidationMode(mode)[source]

Set the way to perform interactive mode validation.

See ValidationMode enumeration for the supported validation modes.

Parameters:mode (ValidationMode) – The interactive mode validation to use.
InteractiveRegionOfInterestManager.getMessage()[source]

Returns the current status message.

This message is meant to be displayed in a status bar.

Return type:str
InteractiveRegionOfInterestManager.isExec()[source]

Returns True if exec_() is currently running.

Return type:bool
InteractiveRegionOfInterestManager.exec_(roiClass, timeout=0)[source]

Block until ROI selection is done or timeout is elapsed.

quit() also ends this blocking call.

Parameters:
  • roiClass (class) – The class of the ROI which have to be created. See silx.gui.plot.items.roi.
  • timeout (int) – Maximum duration in seconds to block. Default: No timeout
Returns:

The list of ROIs
Return type:

List[RegionOfInterest]

RegionOfInterestTableWidget class

class silx.gui.plot.tools.roi.RegionOfInterestTableWidget(parent=None)[source]

Widget displaying the ROIs of a RegionOfInterestManager

setRegionOfInterestManager(manager)[source]

Set the RegionOfInterestManager object to sync with

Parameters:manager (RegionOfInterestManager) –
getRegionOfInterestManager()[source]

Returns the RegionOfInterestManager this widget supervise.

It returns None if not sync with an RegionOfInterestManager.

Return type:RegionOfInterestManager

profile: Profile Tools

This module provides tools to get profiles on plot data.

It provides:

ScatterProfileToolBar

class silx.gui.plot.tools.profile.ScatterProfileToolBar(parent=None, plot=None, title='Scatter Profile')[source]

QToolBar providing scatter plot profiling tools

Parameters:
  • parent – See QToolBar.
  • plot – PlotWidget on which to operate.
  • title (str) – See QToolBar.
getNPoints()[source]

Returns the number of points of the profiles

Return type:int
setNPoints(npoints)[source]

Set the number of points of the profiles

Parameters:npoints (int) –
clearProfile()

Clear the current line ROI and associated profile

getColor()

Returns the color used for the profile and ROI

Return type:QColor
getDefaultProfileWindow()

Returns the default floating profile window if in use else None.

See isDefaultProfileWindowEnabled()

Return type:Union[ProfileMainWindow,None]
getPlotWidget()

The PlotWidget associated to the toolbar.

Return type:Union[~silx.gui.plot.PlotWidget,None]
getProfilePoints(copy=True)

Returns the profile sampling points as (x, y) or None

Parameters:copy (bool) – True to get a copy, False to get internal arrays (do not modify)
Return type:Union[numpy.ndarray,None]
getProfileTitle()

Returns the profile title

Return type:str
getProfileValues(copy=True)

Returns the values of the profile or None

Parameters:copy (bool) – True to get a copy, False to get internal arrays (do not modify)
Return type:Union[numpy.ndarray,None]
isDefaultProfileWindowEnabled()

Returns True if the default floating profile window is used

Return type:bool
setColor(color)

Set the color to use for ROI and profile.

Parameters:color – Either a color name, a QColor, a list of uint8 or float in [0, 1].
setDefaultProfileWindowEnabled(enabled)

Set whether to use or not the default floating profile window.

Parameters:enabled (bool) – True to use, False to disable

ColorBar: ColorBar Widget

Module containing several widgets associated to a colormap.

ColorBarWidget class

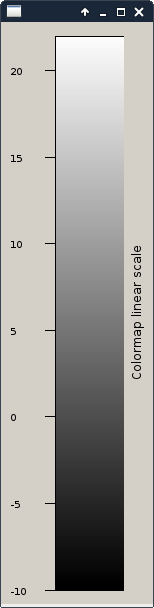

class silx.gui.plot.ColorBar.ColorBarWidget(parent=None, plot=None, legend=None)[source]

Colorbar widget displaying a colormap

It uses a description of colormap as dict compatible with Plot.

../../../_images/linearColorbar.png

To run the following sample code, a QApplication must be initialized.

>>> from silx.gui.plot import Plot2D
>>> from silx.gui.plot.ColorBar import ColorBarWidget

>>> plot = Plot2D()  # Create a plot widget
>>> plot.show()

>>> colorbar = ColorBarWidget(plot=plot, legend='Colormap')  # Associate the colorbar with it
>>> colorbar.show()

Initializer parameters:

Parameters:
  • parent – See QWidget
  • plot – PlotWidget the colorbar is attached to (optional)
  • legend (str) – the label to set to the colorbar
sigVisibleChanged

Emitted when the property visible have changed.

getPlot()[source]

Returns the Plot associated to this widget or None

setPlot(plot)[source]

Associate a plot to the ColorBar

Parameters:plot – the plot to associate with the colorbar. If None will remove any connection with a previous plot.
getColormap()[source]
Returns:the Colormap colormap displayed in the colorbar.
setColormap(colormap, data=None)[source]

Set the colormap to be displayed.

Parameters:
  • colormap (Colormap) – The colormap to apply on the ColorBarWidget
  • data (numpy.ndarray) – the data to display, needed if the colormap require an autoscale
setLegend(legend)[source]

Set the legend displayed along the colorbar

Parameters:legend (str) – The label
getLegend()[source]

Returns the legend displayed along the colorbar

Returns:return the legend displayed along the colorbar
Return type:str
getColorScaleBar()[source]
Returns:return the ColorScaleBar used to display ColorScale and ticks
