silx view

Purpose

The silx view command is provided to open data files in a graphical user interface. It allows to select a particular piece of data or a particular header in structured data formats, and to view this data in plot widgets or in simple table views.

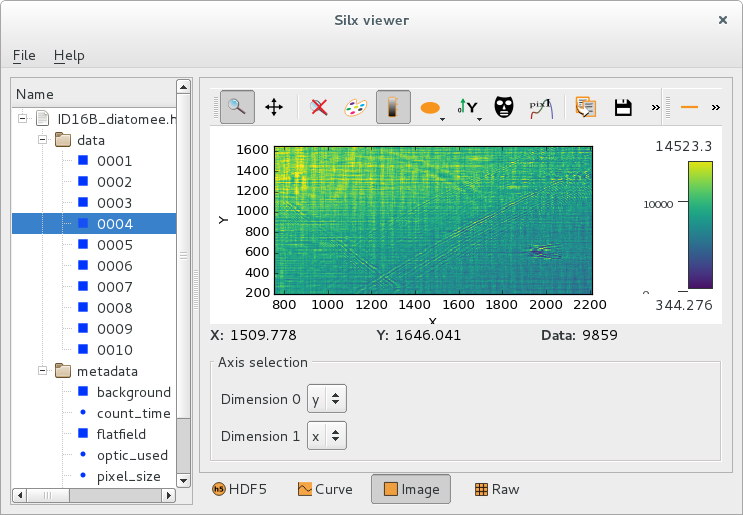

imgViewImg Image view

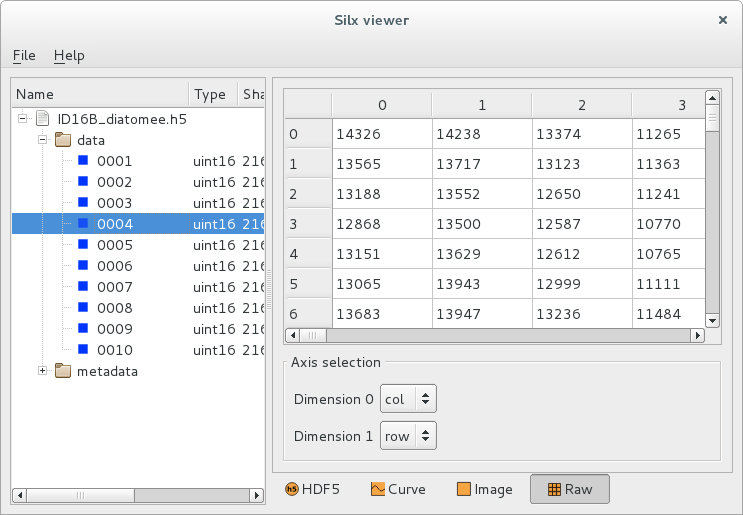

imgViewTable Viewing raw data as values in a table

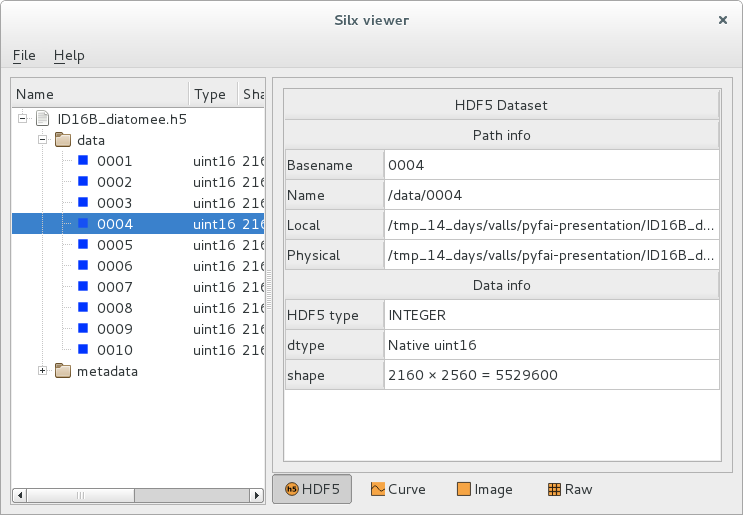

imgViewHdf5 Viewing metadata and HDF5 attributes

Usage

silx view [-h] [--debug] [--use-opengl-plot] [files [files ...]]

Options

-h, --help Show this help message and exit
--debug Set logging system in debug mode
--use-opengl-plot
 Use OpenGL for plots (instead of matplotlib)

Examples of usage

silx view 31oct98.dat
silx view *.edf
silx view myfile.h5
