silx view¶
Purpose¶
The silx view command is provided to open data files in a graphical user interface. It allows to select a particular piece of data or a particular header in structured data formats, and to view this data in plot widgets or in simple table views.

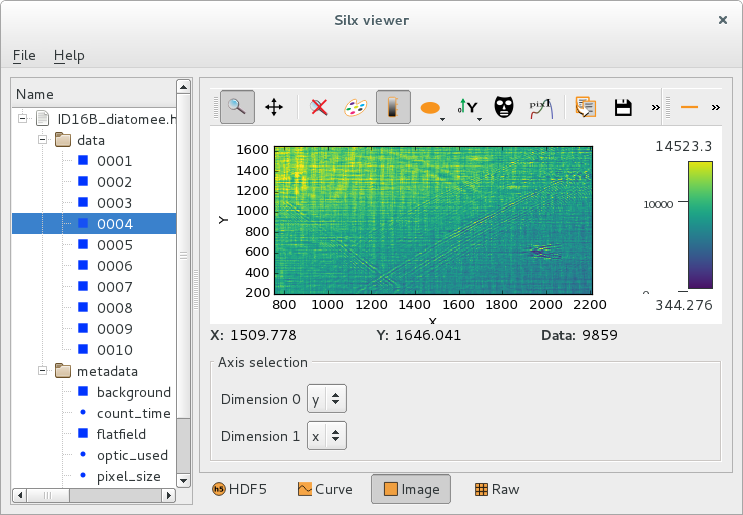

Image view | |

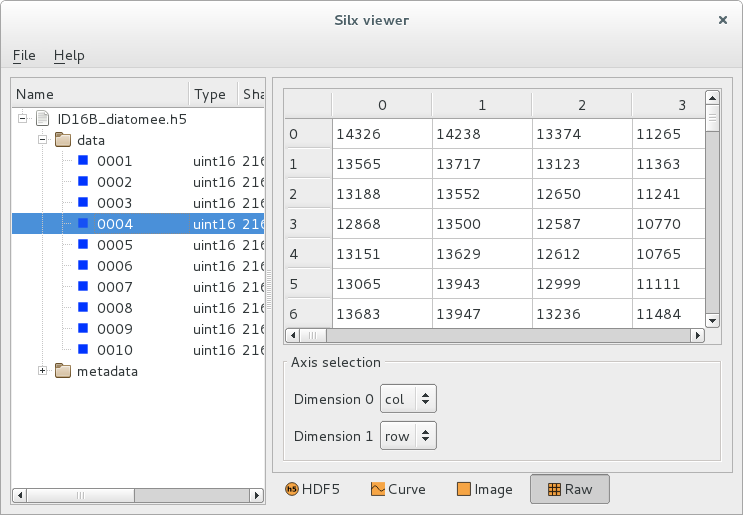

Viewing raw data as values in a table | |

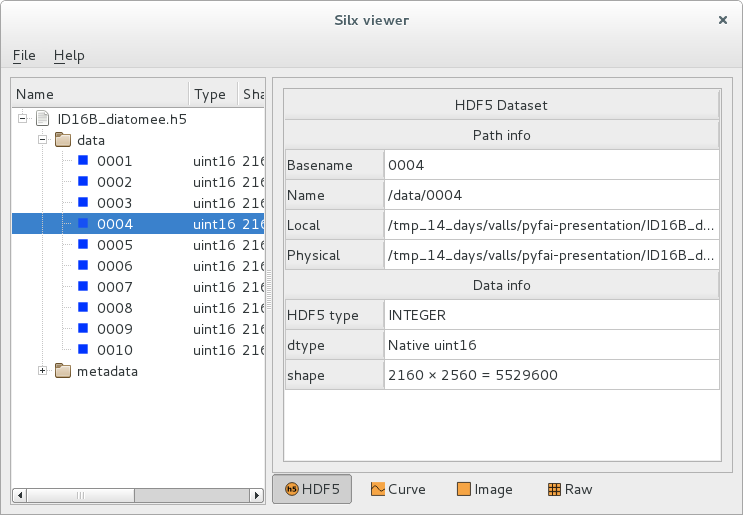

Viewing metadata and HDF5 attributes |
Usage¶
silx view [-h] [--debug] [--use-opengl-plot] [files [files ...]]
Options¶
-h, --help Show this help message and exit --debug Set logging system in debug mode --use-opengl-plot Use OpenGL for plots (instead of matplotlib) -f, --fresh Start the application using new fresh user preferences --hdf5-file-locking Start the application with HDF5 file locking enabled (it is disabled by default)
Examples of usage¶
silx view 31oct98.dat
silx view *.edf
silx view myfile.h5
