AbstractDataFileDialog

This module contains an AbstractDataFileDialog.

class AbstractDataFileDialog(parent=None)[source]

Bases: QDialog

The AbstractFileDialog provides a generic GUI to create a custom dialog allowing to access to file resources like HDF5 files or HDF5 datasets.

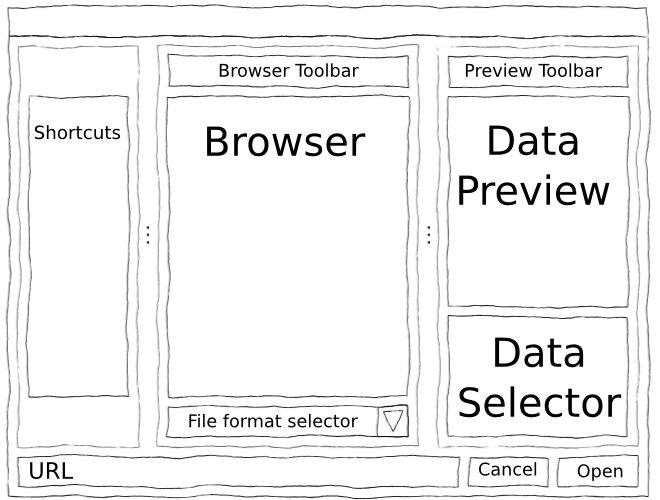

../../../_images/abstractdatafiledialog.png

The dialog contains:

  • Shortcuts: It provides few links to have a fast access of browsing

    locations.

  • Browser: It provides a display to browse throw the file system and inside

    HDF5 files or fabio files. A file format selector is provided.

  • URL: Display the URL available to reach the data using

    silx.io.get_data(), silx.io.open().

  • Data selector: A widget to apply a sub selection of the browsed dataset.

    This widget can be provided, else nothing will be used.

  • Data preview: A widget to preview the selected data, which is the result

    of the filter from the data selector. This widget can be provided, else nothing will be used.

  • Preview’s toolbar: Provides tools used to custom data preview or data

    selector. This widget can be provided, else nothing will be used.

  • Buttons to validate the dialog

done(self, int)[source]
hasPendingEvents()[source]

Returns true if the dialog have asynchronous tasks working on the background.

viewMode()[source]

Returns the current view mode.

Return type

qt.QFileDialog.ViewMode

setViewMode(mode)[source]

Set the current view mode.

Parameters

mode (qt.QFileDialog.ViewMode) – The new view mode

setDirectory(path)[source]

Sets the data dialog’s current directory.

selectedFile()[source]

Returns the file path containing the selected data.

Return type

str

selectFile(filename)[source]

Sets the data dialog’s current file.

selectUrl(url)[source]

Sets the data dialog’s current data url.

Parameters

url (Union[str,DataUrl]) – URL identifying a data (it can be a DataUrl object)

selectedUrl()[source]

Returns the URL from the file system to the data.

If the dialog is not validated, the path can be an intermediat selected path, or an invalid path.

Return type

str

selectedDataUrl()[source]

Returns the URL as a DataUrl from the file system to the data.

If the dialog is not validated, the path can be an intermediat selected path, or an invalid path.

Return type

DataUrl

directory()[source]

Returns the path from the current browsed directory.

Return type

str

selectedNameFilter()[source]

Returns the filter that the user selected in the file dialog.

history()[source]

Returns the browsing history of the filedialog as a list of paths.

Return type

List<str>

setSidebarUrls(urls)[source]

Sets the urls that are located in the sidebar.

sidebarUrls()[source]

Returns a list of urls that are currently in the sidebar.

restoreState(state)[source]

Restores the dialogs’s layout, history and current directory to the state specified.

Parameters

state (qt.QByteArray) – Stream containing the new state

Return type

bool

saveState()[source]

Saves the state of the dialog’s layout, history and current directory.

Return type

qt.QByteArray
