silx view

Purpose

The silx view command is provided to open data files in a graphical user interface. It allows to select a particular piece of data or a particular header in structured data formats, and to view this data in plot widgets or in simple table views.

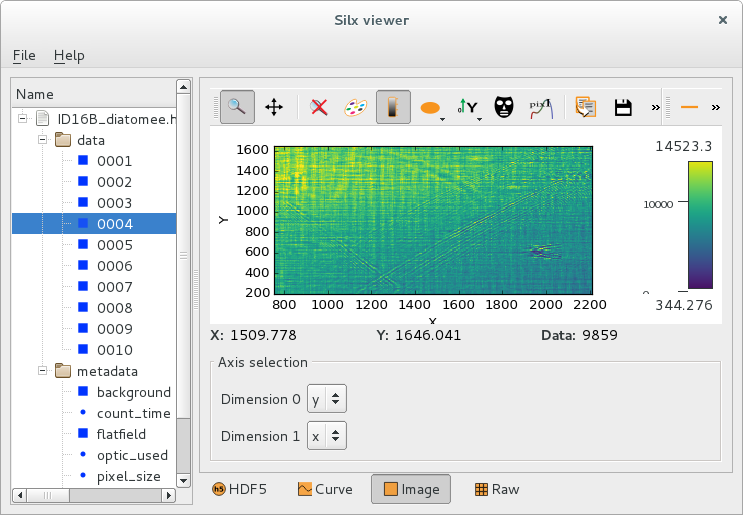

	Image view

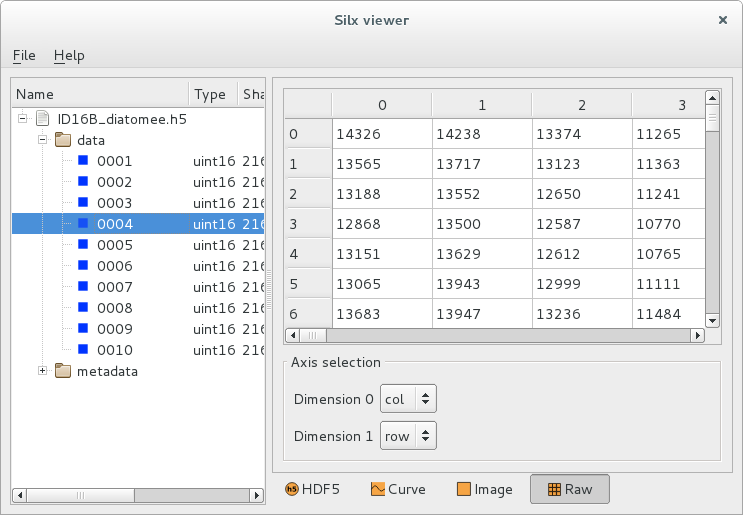

	Viewing raw data as values in a table

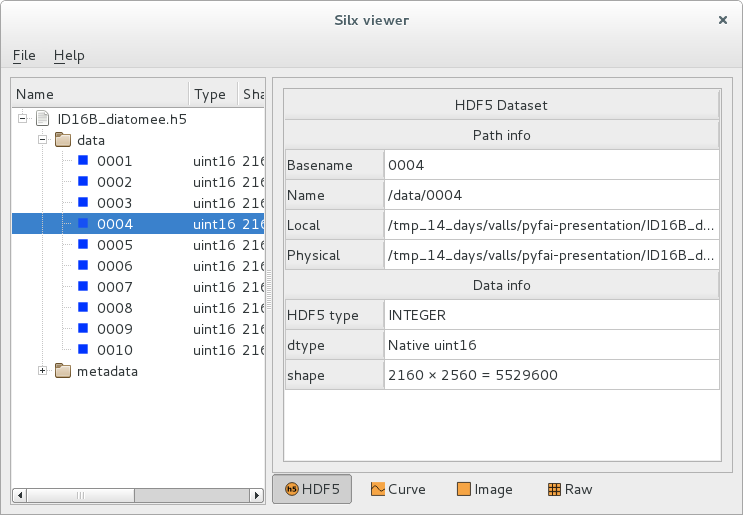

	Viewing metadata and HDF5 attributes

Usage

silx view [-h] [--debug] [--use-opengl-plot] [files [files ...]]

Options

-h, --help	Show this help message and exit
--debug	Set logging system in debug mode
--use-opengl-plot
	Use OpenGL for plots (instead of matplotlib)
-f, --fresh	Start the application using new fresh user preferences
--hdf5-file-locking
	Start the application with HDF5 file locking enabled (it is disabled by default)

Examples of usage

silx view 31oct98.dat
silx view *.edf
silx view myfile.h5
